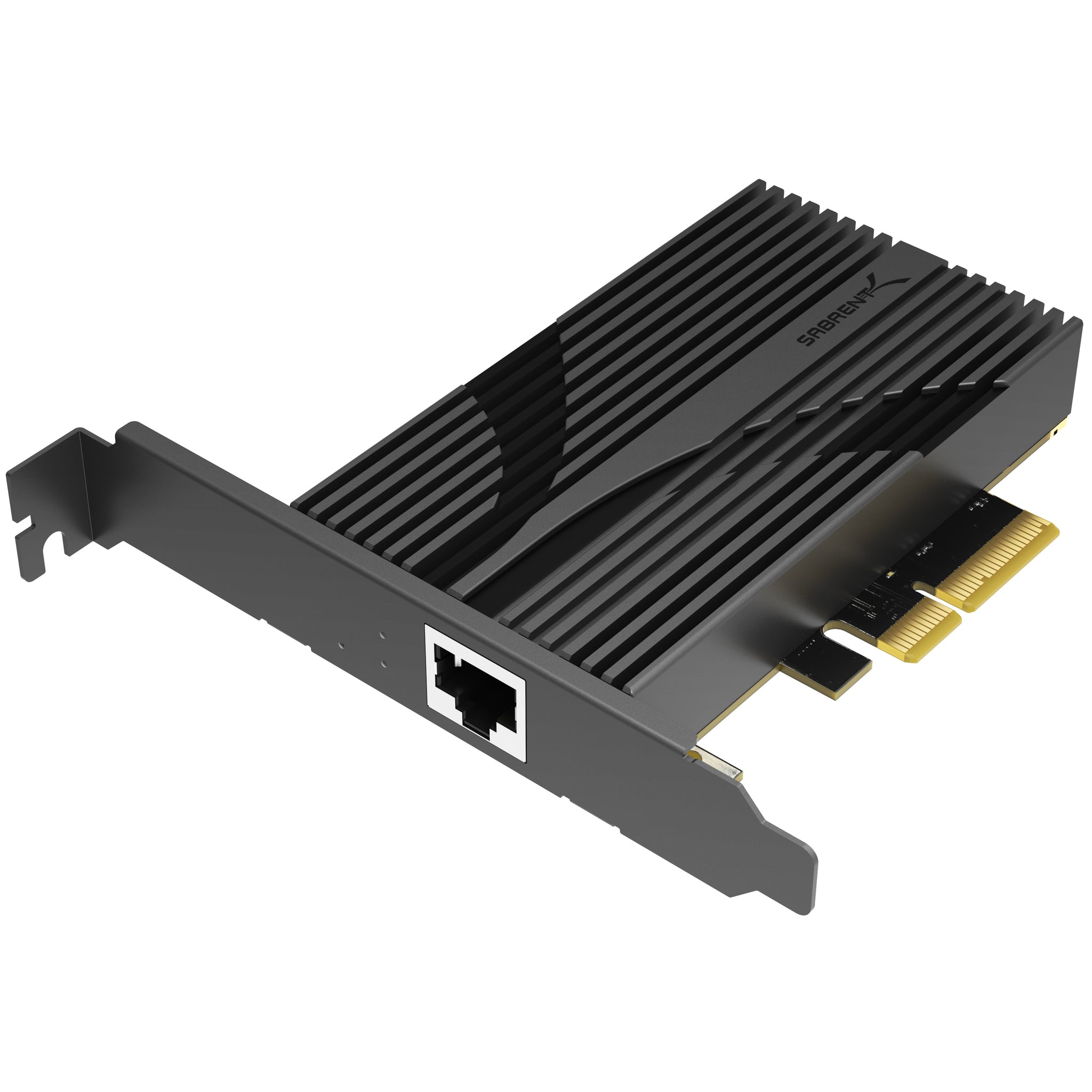

10GbE Internal PCIe Network Adapter

Connects via a free x4/x8/x16 physical PCIe slot

NT-10PE

● Network connection speeds of up to 10Gbps (10GbE) via a PCIe slot
● Backward compatible with 5GbE/2.5GbE multi-gig connections, GbE, Fast Ethernet (100Mbps), and Ethernet (10Mbps)
● x4 PCIe 3.0 physically and electrically but compatible with x8/x16 physical slots, x1/x8/x16 electrical slots, and previous/future PCIe generations
● Feature support for L0s/L1/L23/L3, S3/S4 wake-up, LTR/AER, upstream/downstream SRTS, 512B payload size, and more
● Aluminum alloy construction with integrated status LEDs

Product Features

Upgrade Your Network

Need a faster or additional network connection? Don’t let your fast system or server be bottlenecked at its main point of communication. Conveniently add a PCIe Ethernet upgrade card and enjoy speeds up to 10Gbps (10GbE).

Fastest Speeds

The Network Adapter connects at up to 10GbE speeds but is also backward compatible with multi-gig speeds of 5GbE and 2.5GbE, as well as Gigabit Ethernet (GbE) and older Ethernet (10Mbps) and Fast Ethernet (100Mbps) connections.

Convenient PCIe

The adapter connects via a free x4/x8/x16 physical PCIe slot on your PC/server at a range of PCIe widths and speeds from x1 to x4 with backward/forward compatibility at up to x4 PCIe 3.0 speeds.

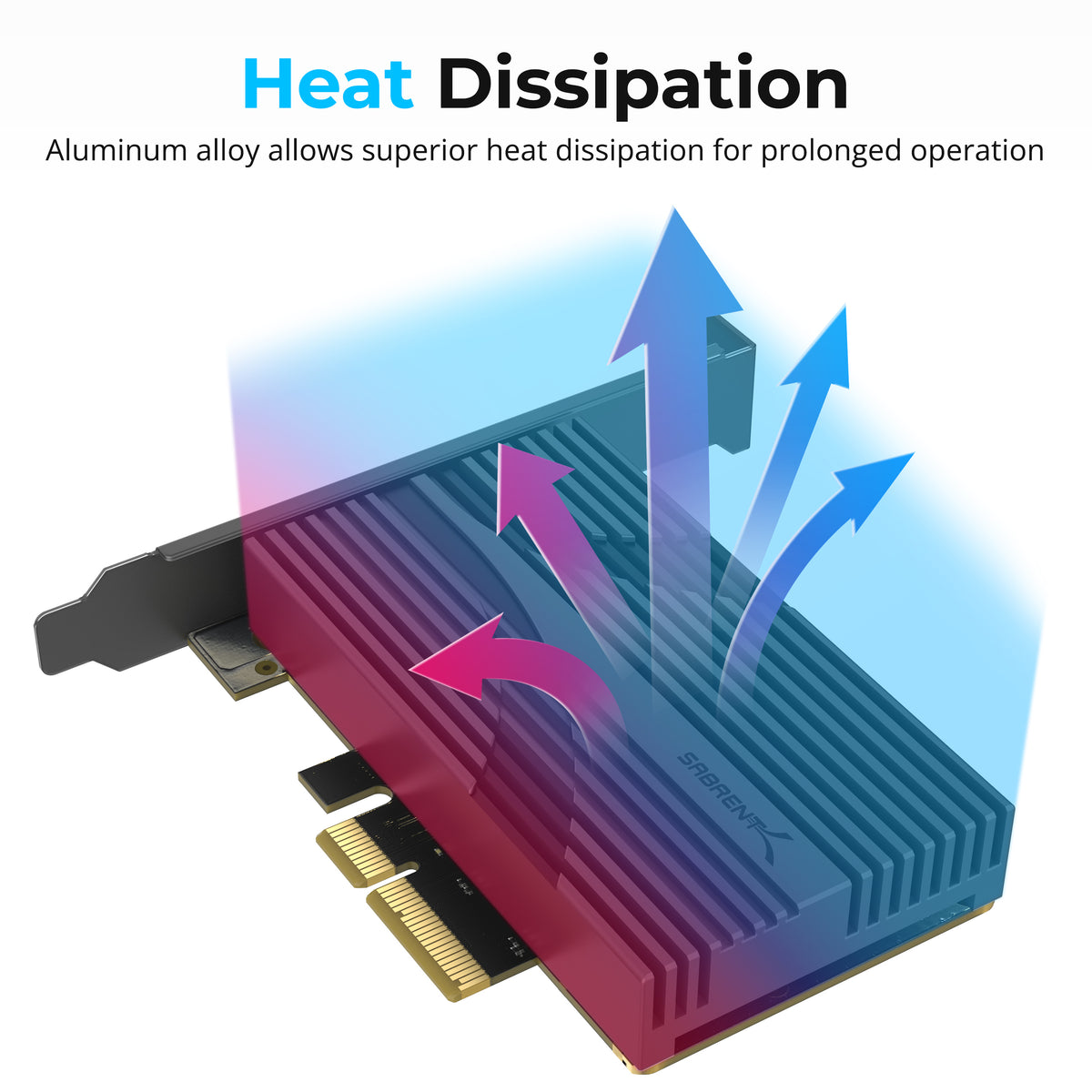

Built For You

We built this adapter with an aluminum alloy for card stability and durability with superior heat dissipation for prolonged operation. Integrated LEDs show status at a glance. Important Ethernet adapter features are supported as well.

Maximum speed

Maybe your network is just too slow for your needs, bottlenecking your system’s or server’s productivity. Maybe you just need another network connection, or want to add a fast and reliable wired connection to supplement your wireless link. In either case, the Sabrent 10GbE Internal PCIe Network Adapter is the perfect choice. This adapter can provide network transfer speeds up to 10Gbps through a standard PCIe slot. It’s designed to be a simple upgrade that you can conveniently install and flexibly use for whatever your networking goals might be with featureful support.



Older networks and networking hardware are supported, too, as the adapter is backward compatible with multi-gig 5GbE and 2.5GbE, regular Gigabit Ethernet (1GbE), as well as older Ethernet (10Mbps) and Fast Ethernet (100Mbps) connections. Legacy and future systems are also supported with backward and forward PCIe compatibility at up to x4 PCIe 3.0 speeds. The adapter works in x4/x8/x16 physical PCIe slots of any generation, and is built with an aluminum alloy heatsink for maximum heat dissipation during extended operation. It’s all topped off with clear status LEDs so you know when your data is in motion. Slot it in and get to work at maximum speed.



Note: An x4 PCIe 2.0/x2 PCIe 3.0 or higher card interface is required for optimal performance.

Tech Specs

SKU

NT-10PE

UPC

8-40025-27477-8

Color

Space Gray

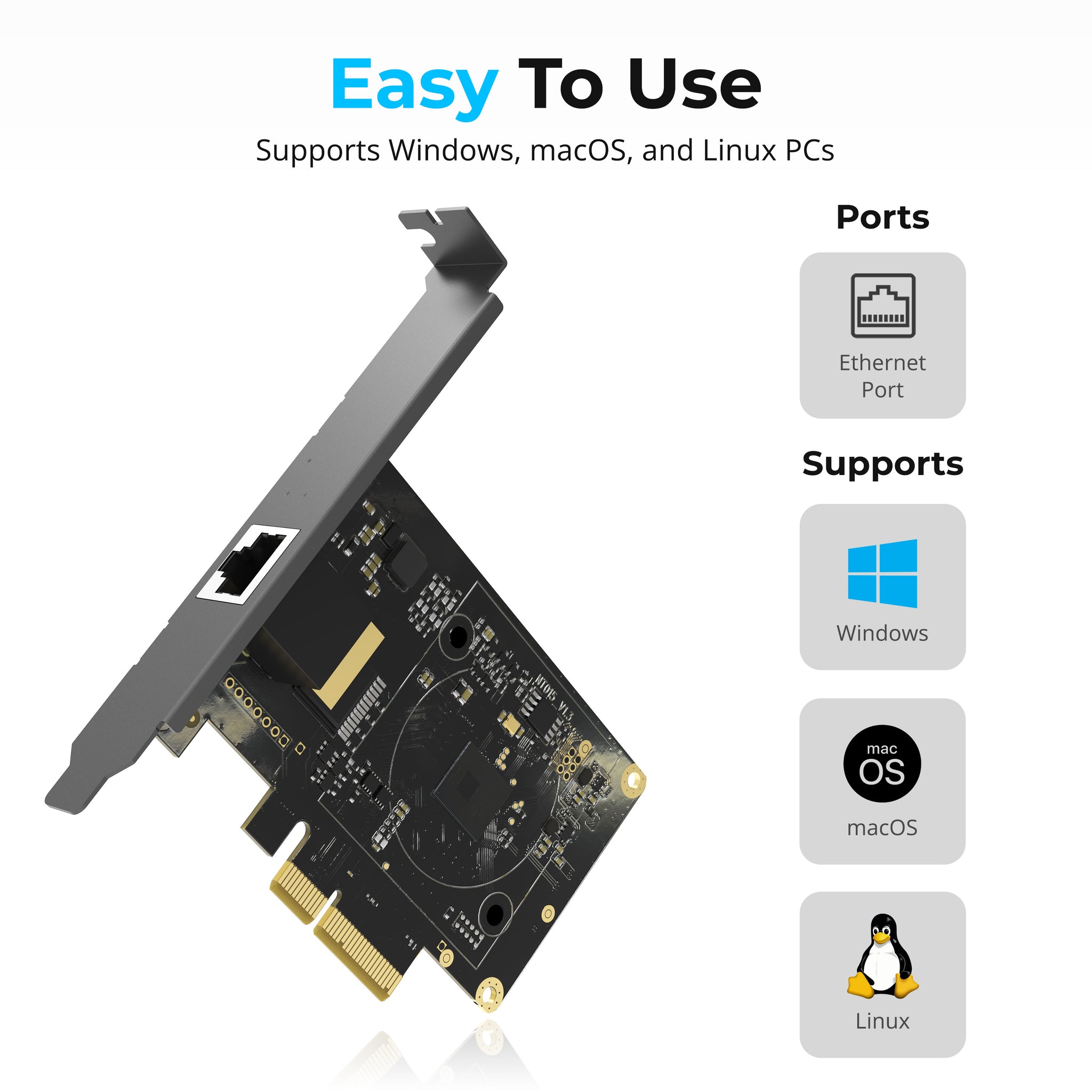

Supported Operating Systems

  • Windows
  • macOS
  • Linux

Dimensions

Length
4.72 in.

Width
4.53 in.

Height
0.87 in.

Weight
6.20 oz.

Package Contents

  • 10GbE Internal PCIe Ethernet Adapter


Downloads

Warranty

1 year warranty without registration

Extend your warranty to 2 years with registration

REGISTER NOW

Why Register Your Sabrent Product?

Registration of your Sabrent product enables us to offer you the best service through important recall notifications and proof of ownership. Registering within 90 days of your purchase makes sure you don’t forget this important step, and it allows us to extend your warranty. A 1-year warranty will be extended to a 2-, 3-, or 5-year warranty depending on the product type.

With what PCIe slots does this adapter work?

This adapter will work in a range of PCIe slots but is designed for an x4 or larger (x8/x16) physical PCIe slot. For the best performance, the slot must be x4 or wider electrically, although x1 will work. Some systems may require UEFI configuration, including PCIe bifurcation in some cases, for specific slots to operate properly.

How can the maximum performance of the adapter be reached?

All cables and networking equipment in the network chain must conform to 10GbE standards for maximum performance. This means a CAT6a or newer cable with consideration of cable length. The adapter will fall back or negotiate to a lower speed if conditions are not sufficient.

What operating systems are supported?

The adapter is designed for Windows 7+, macOS 10.x+, and various Linux distributions. With proper support this includes desktops, laptops, portable gaming or computing systems, tablets, and more.

What are some of the best use and care practices?

It is advised not to bend or put excessive weight on the RJ45 port with an inserted network cable. Avoid adapter contact with water and other liquids. The adapter should be operated in places between 0° and 40°C and from 5% to 90% humidity.
