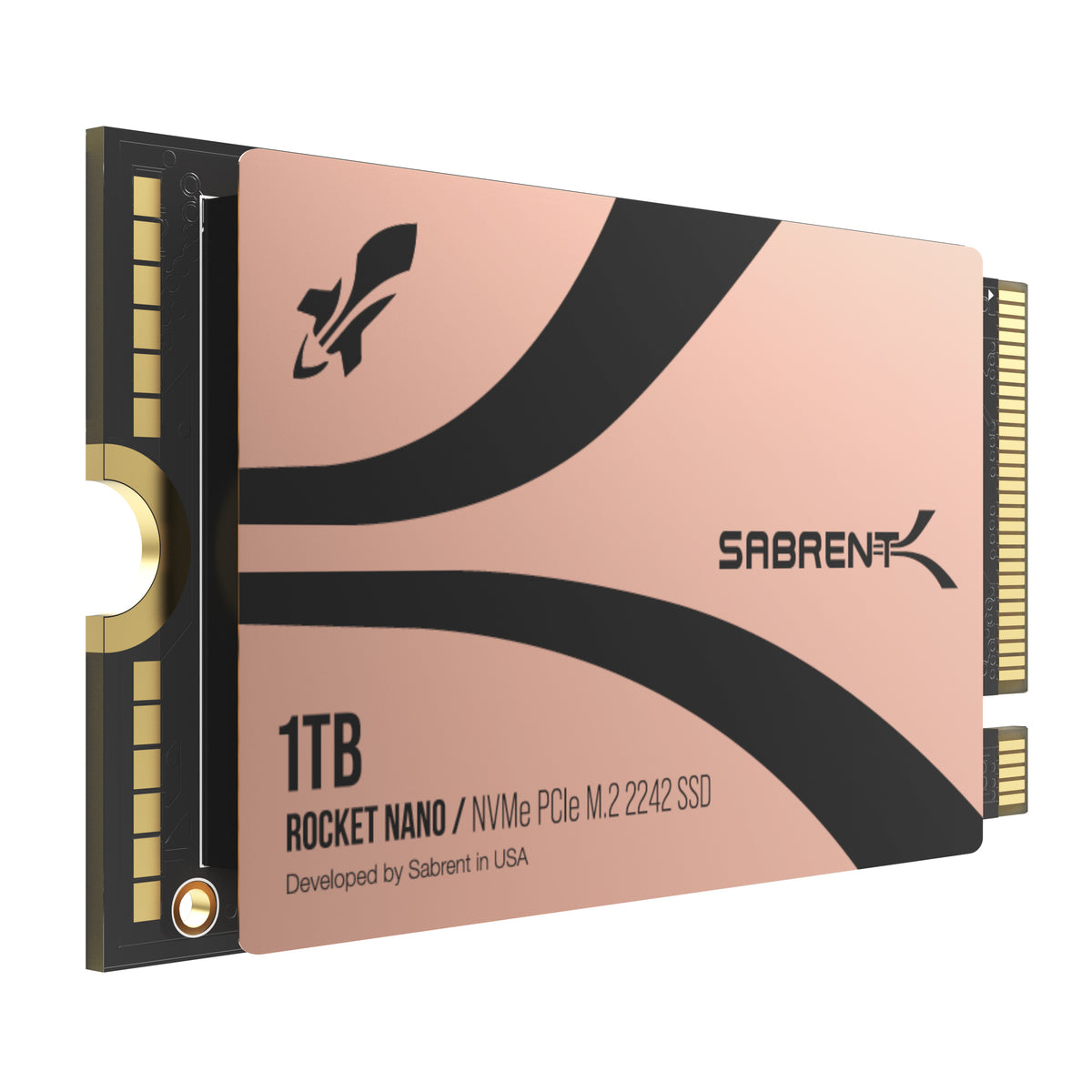

Rocket 2242 NVMe SSD

1TB PCIe 4.0 x4 M.2 2242 Internal Solid State Drive

SB-2742-1TB

  • Compact M.2 2242 NVMe SSD: Designed for systems requiring the smaller 2242 form factor, delivering high-performance storage for laptops, handheld gaming systems, compact PCs, and embedded platforms.
  • PCIe 4.0 x4 Performance: Achieves sequential speeds up to 7,300MB/s read and 6,400MB/s write with up to 950K IOPS, delivering fast boot times, quick file transfers, and responsive system performance.
  • Advanced TLC NAND with Phison Controller: Built with TLC flash memory and the Phison E27T controller to provide strong endurance, efficient performance, and reliable operation in demanding workloads.
  • Efficient Low-Power Design: Optimized for portable and compact systems with peak power consumption under 6W, helping maintain system efficiency while minimizing heat output.
  • Flexible Upgrade for Compact Systems: Ideal for upgrading existing storage or adding high-speed capacity to compatible devices using the M.2 2242 NVMe interface.

Product Features

High Performance

The SABRENT Rocket Nano 2242 NVMe SSD delivers powerful PCIe 4.0 performance in a compact M.2 2242 form factor. Designed for systems that require smaller storage modules, it provides a fast and efficient upgrade for laptops, compact desktops, and specialized devices.

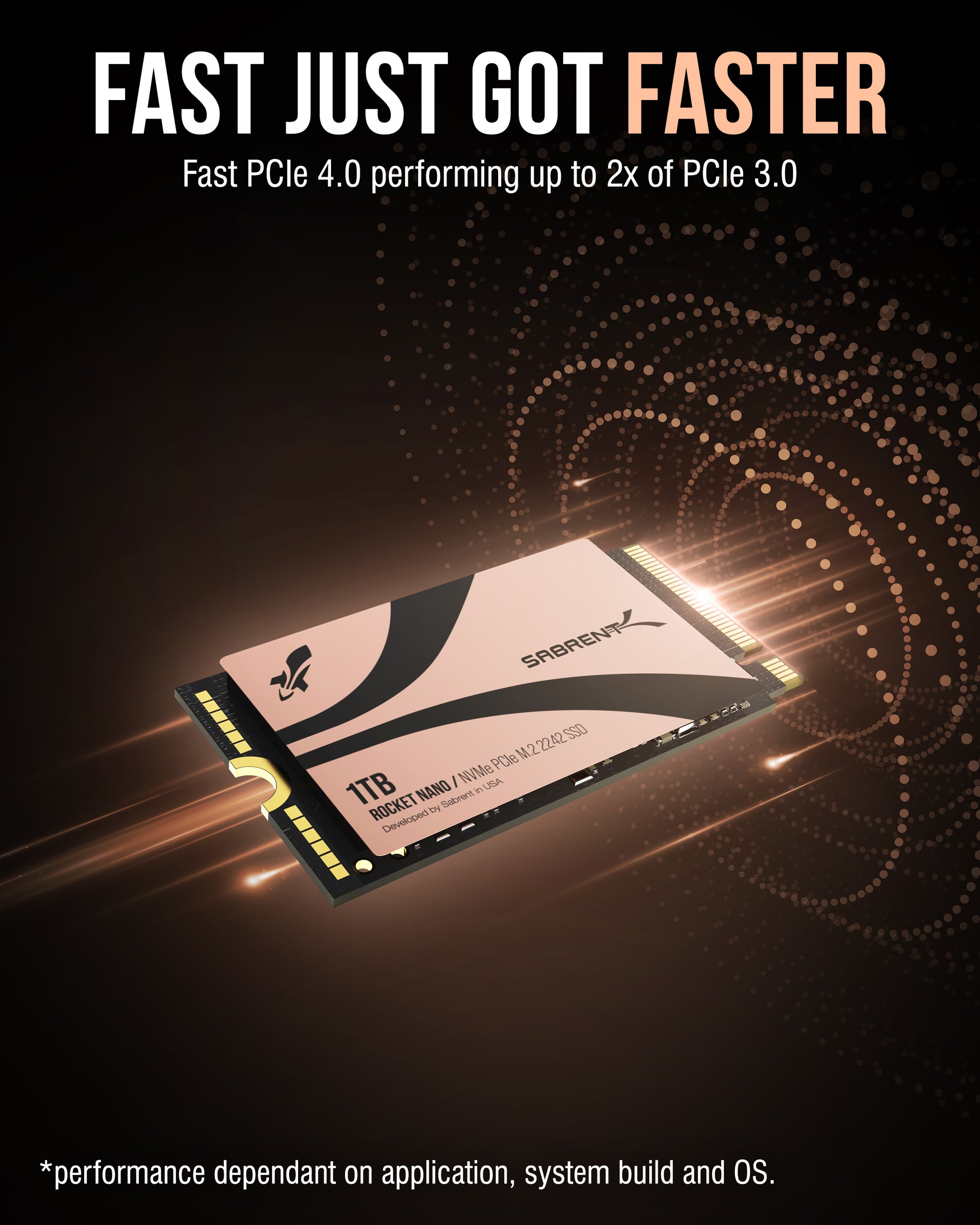

PCIe Gen4 Speed

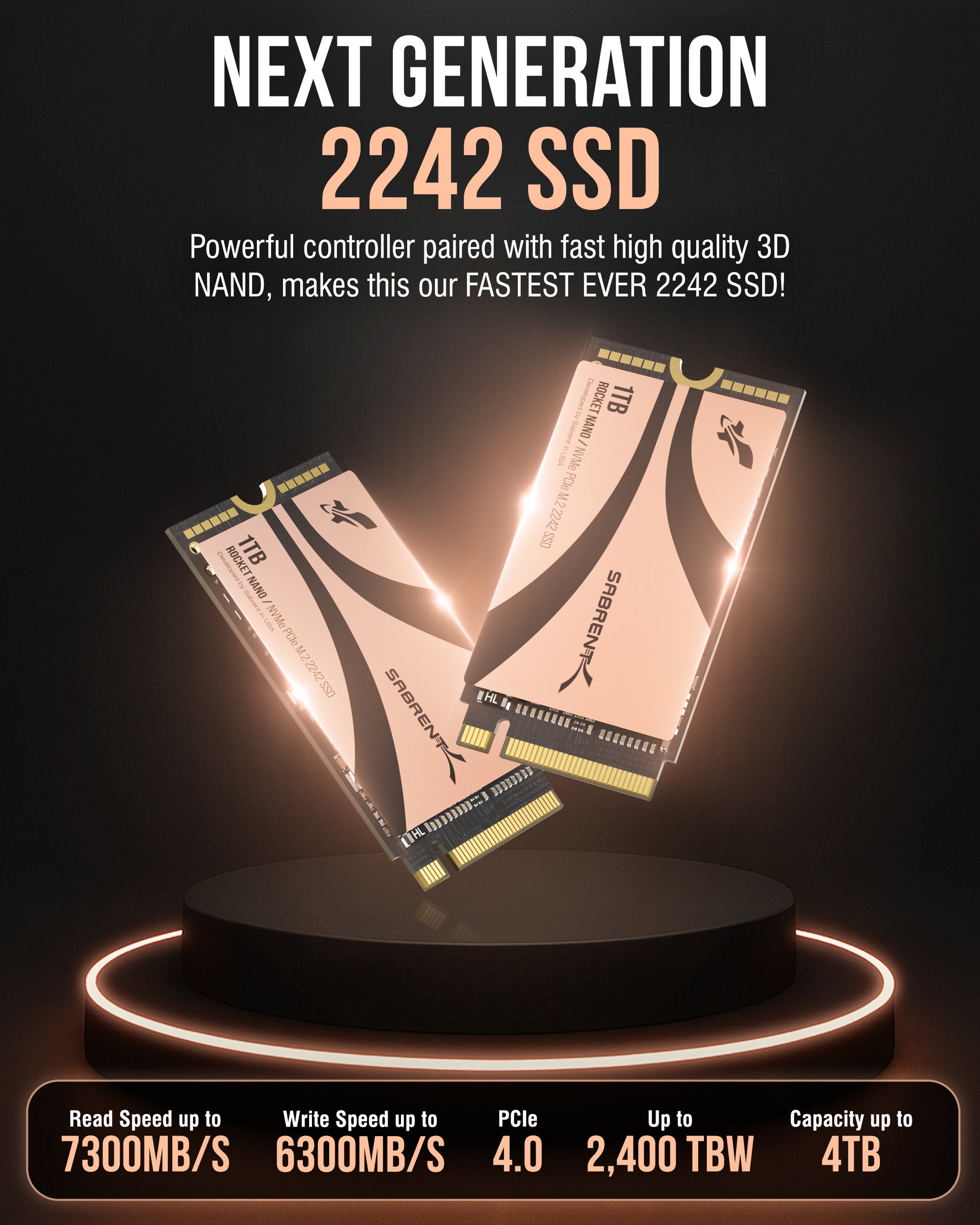

Powered by the Phison E27T controller and high-quality TLC NAND flash, the Rocket Nano 2242 reaches sequential speeds up to 7,300MB/s read and 6,400MB/s write with up to 950K IOPS. This allows faster boot times, smoother application performance, and rapid file transfers.

Optimized for Compact Systems

With a compact single-sided M.2 2242 layout, the drive fits devices where space is limited. Its efficient architecture keeps peak power consumption below 6W, helping maintain stable performance while minimizing heat and power usage.

Reliable Storage Expansion

Whether upgrading an existing system or expanding storage capacity, the Rocket Nano 2242 provides a high-speed NVMe solution designed for modern computing needs.

Tech Specs

SKU

SB-2742-1TB

UPC

840025267886

Performance

7,300MB/s read and 6,400MB/s write

Dimensions

Length
1.65 in.

Width
0.87 in.

Height
0.14 in.

Weight
0.10 oz.

Package Content

  • Sabrent Rocket Nano 2242

Warranty

year warranty without registration

Extend your warranty to 5 years with registration

REGISTER NOW

Why Register Your Sabrent Product?

Registration of your Sabrent product enables us to offer you the best service through important recall notifications and proof of ownership. Registering within 90 days of your purchase makes sure you don’t forget this important step, and it allows us to extend your warranty. A 1-year warranty will be extended to a 2-, 3-, or 5-year warranty depending on the product type.

With which systems and devices will this drive work?

This drive is a standard NVMe SSD designed for M.2 slots that can receive M Key SSDs. Any slot capable of taking M.2 2242 or longer SSDs will work. Some of these will have an additional offset for 2242 length drives, others may require an extender. This includes enclosures and adapters. It is not recommended to modify M.2 2230 slots to take this drive.
In addition, the Rocket Nano 2242 is single-sided up to 2TB but is double-sided at 4TB. At 4TB it may therefore not fit all systems or enclosures. Verify before beginning the installation procedure.

Will this drive work with earlier/later generation M.2 slots?

Yes. This drive is designed for an x4 PCIe 4.0 M.2 slot but will work with older and newer generation slots, or slots with fewer than four lanes. Speeds will be impacted when the drive is installed in an older slot or a slot with only one or two lanes.

Does this drive have host memory buffer (HMB) technology?

Yes. This will work with all modern operating systems and in certain enclosures that use Thunderbolt or USB4 technology. For older USB enclosures or adapters, performance will already be bottlenecked and HMB is less critical.

What impact will this drive have on battery life?

This drive is designed to be very power efficient with its controller and NAND flash. It is also capable of utilizing many low and idle power states for all modern operating systems. For gaming and general use, the impact on battery life should be minimal.
