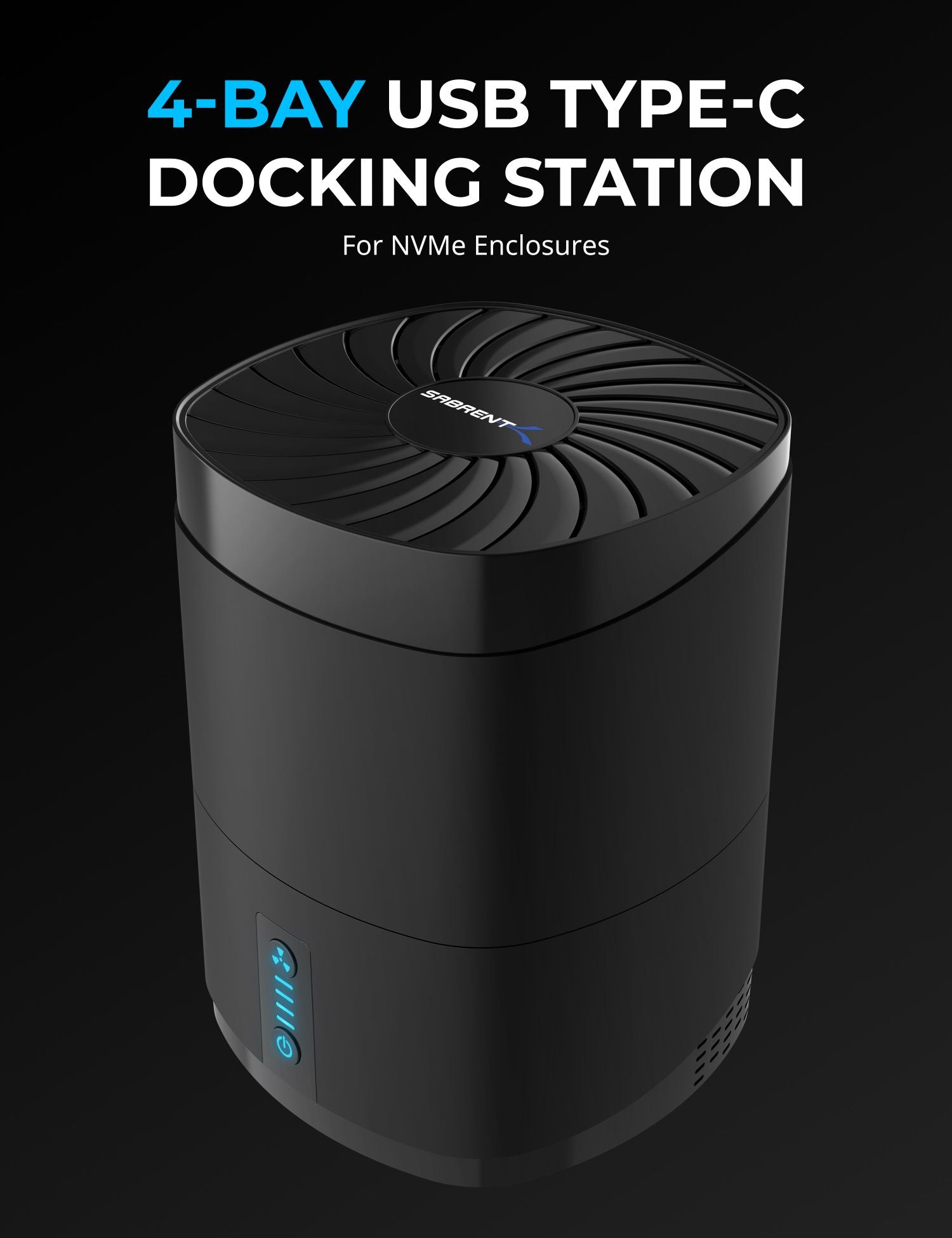

4-Bay USB Type-C Docking Station

Cooling Fan, LED Indicators, for NVMe M.2 SSD Enclosures

DS-4BNE

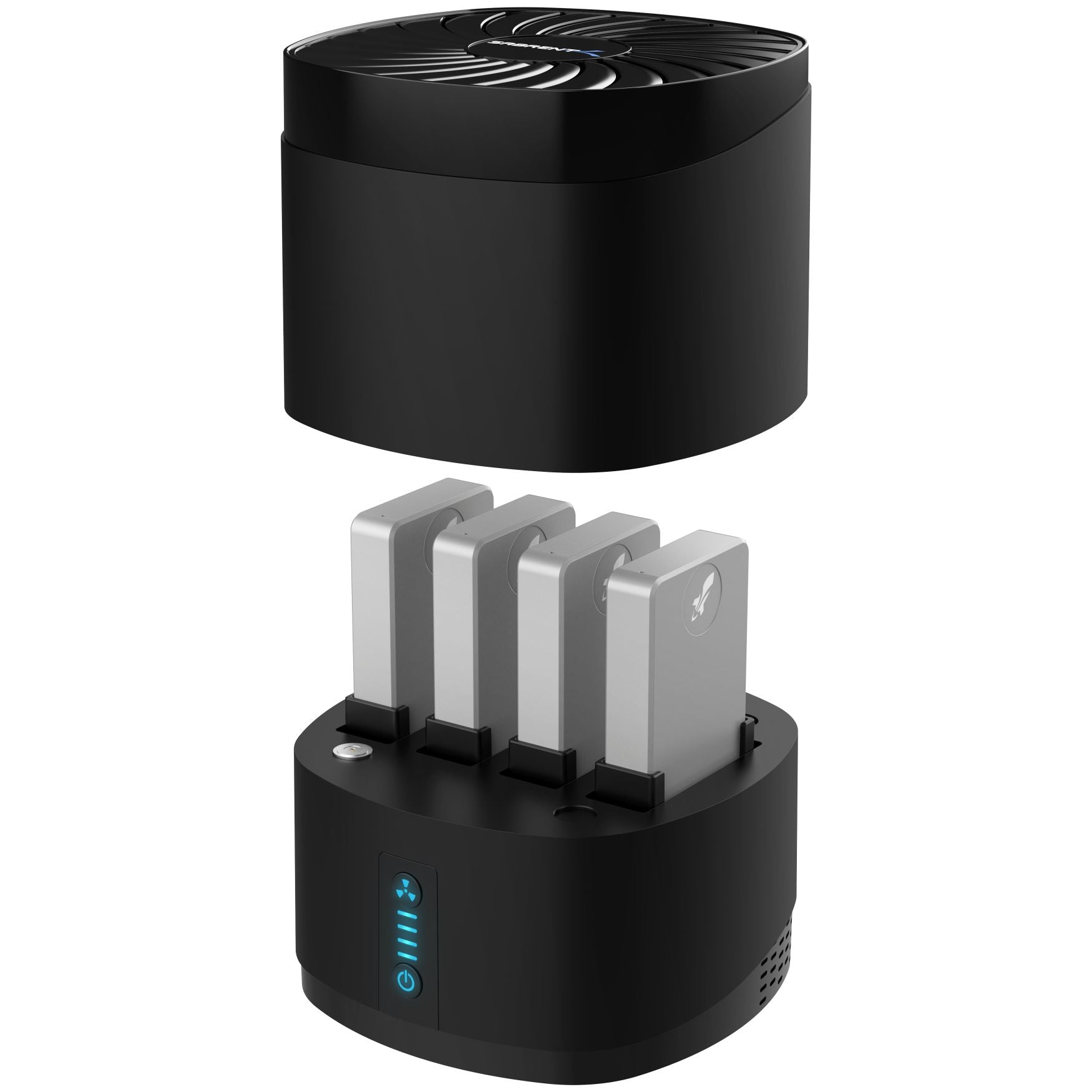

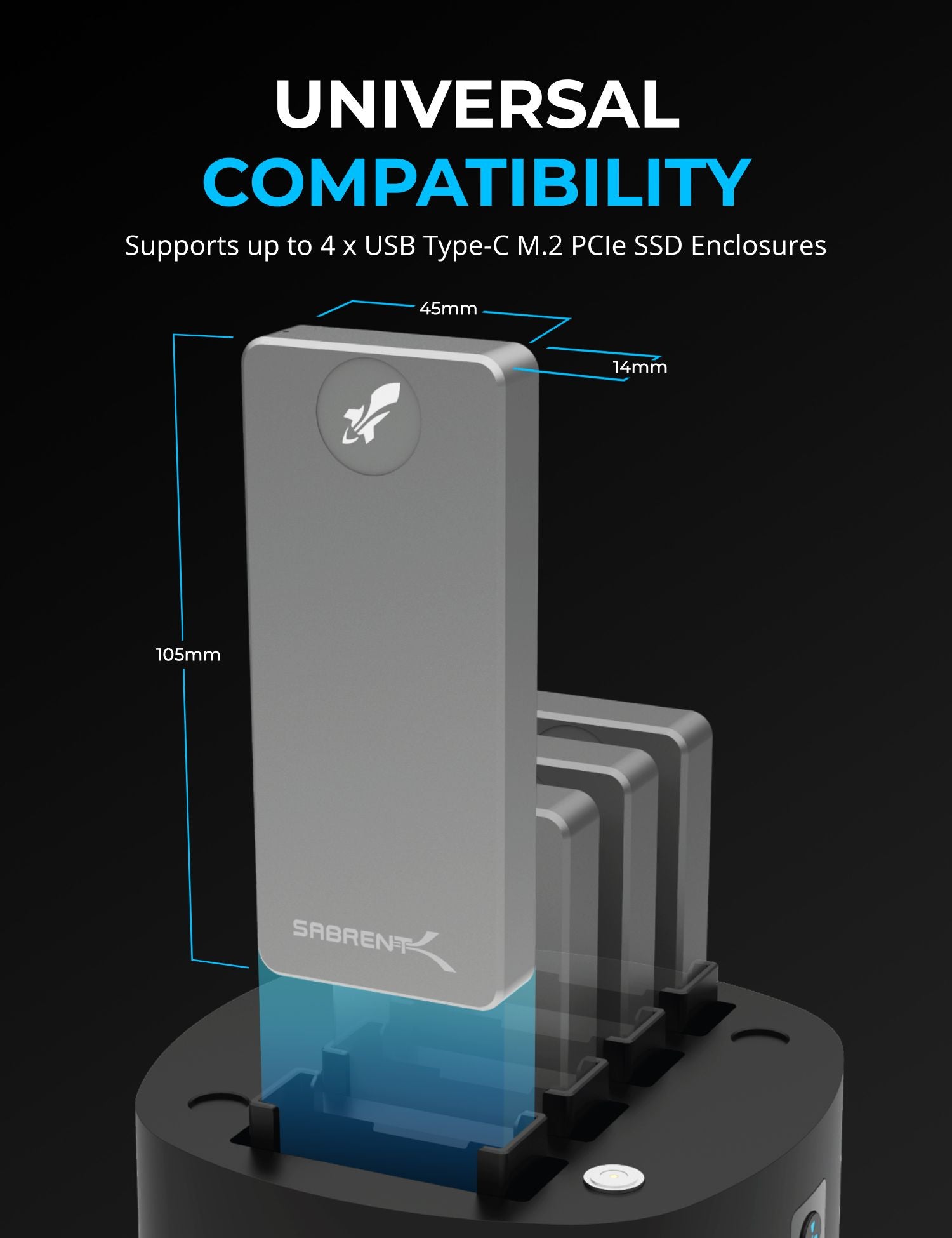

  • QUADRUPLE DOCKING STATION: Park up to four of your favorite external SSDs in one place. USB Type-C M.2 PCIe enclosures can slide easily into the dock without any tools. Also supports certain USB-C card reader enclosures.

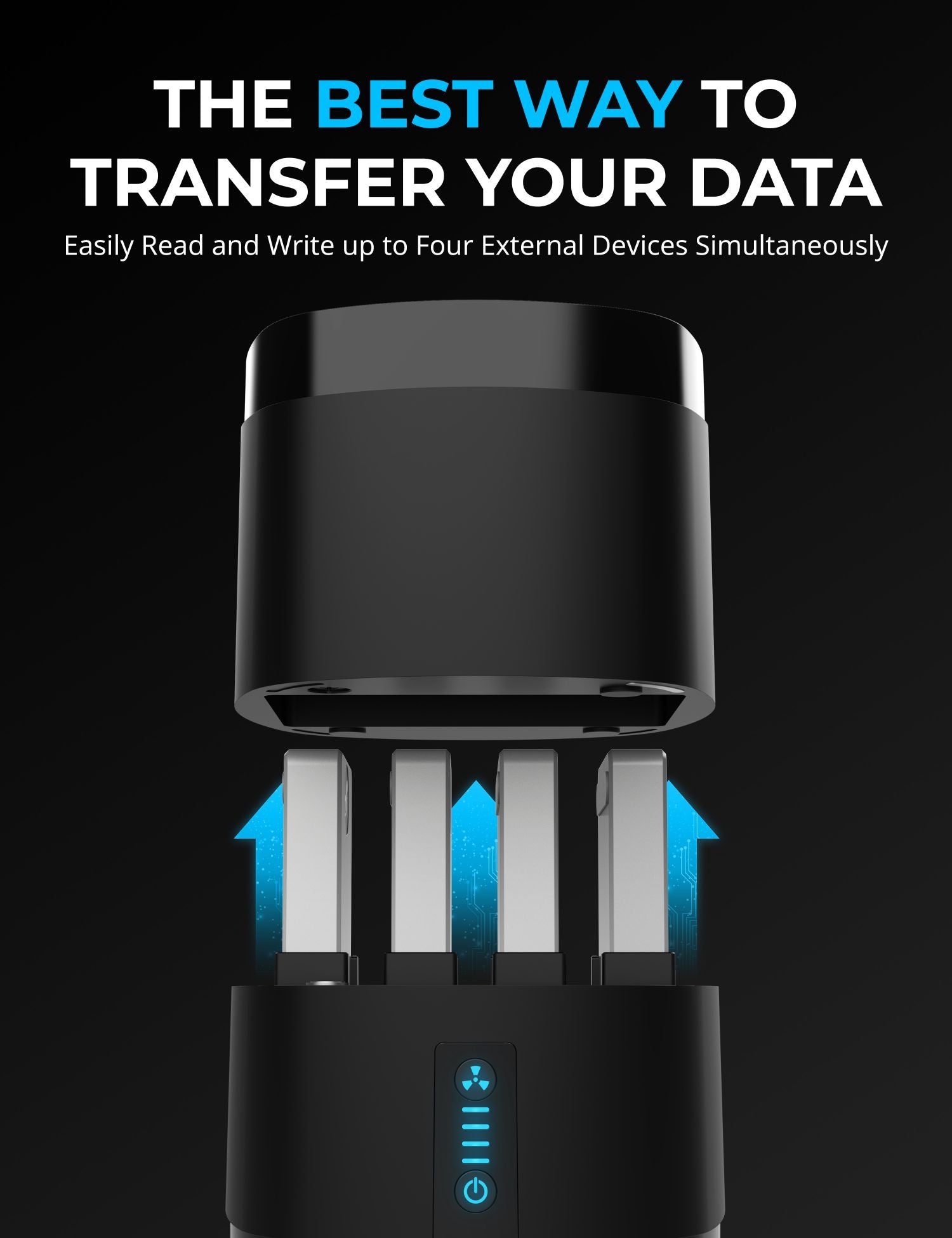

  • INDEPENDENCE: Each drive or port is individually accessible. Forward-facing LEDs indicate the power status of each one, with additional indicators for station and fan power. Have complete control of the station, its fan, and its bays.
  • QUICK ACCESS: The Type-C to Type-C cable conveniently connects the device to your computer at up to 10Gbps over USB 3.2 Gen 2x1. Backward compatible with USB 3.0/2.0/1.1 at respective speeds. No drivers required.
  • KEEP COOL AT SPEED: The docking station comes with a built-in 80x80x15mm cooling fan beneath a safe shroud that can be turned on or off as needed with its own button. Your devices won’t overheat even after hours of sustained operation.
  • POWERFUL: Included is a 12V/3A power supply to make sure you’re not limited by low-power USB ports. This can power the drives and fan all at once. Plug adapters are included for the U.S., U.K., Europe, and South America with 100-240V AC for input.
  • Supports: The XTRM-Q and Nano portable SSDs, plus the EC-NVMe enclosure. The CFexpress Type B (CR-CFER) and SD Express 7.1 (CR-SDX7) memory card readers are also supported.



Description

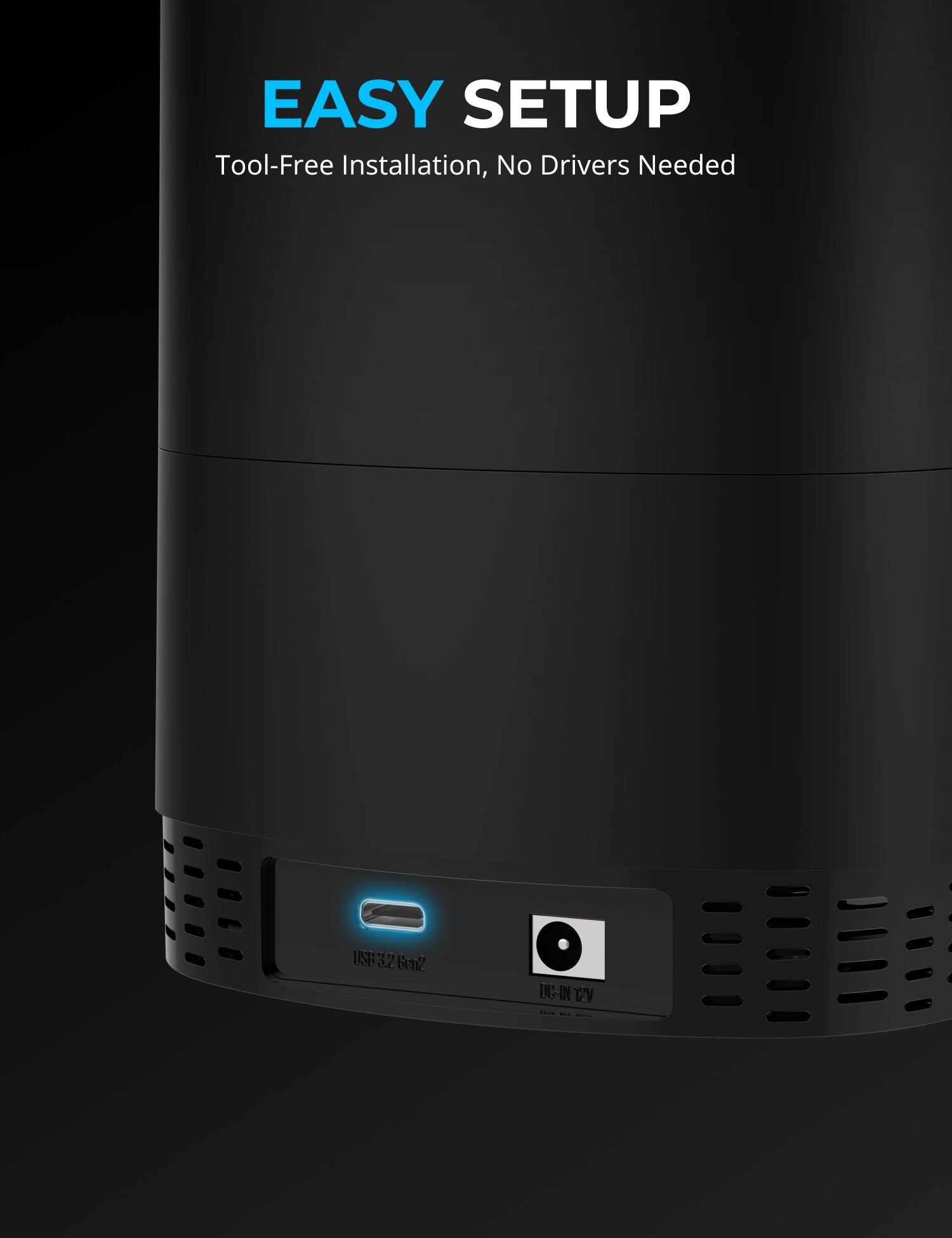

The Sabrent 4-Bay USB Type-C Docking Station allows you to connect up to four NVMe enclosures or card readers with minimal fuss. Plug in the station’s power supply and connect the included Type-C to Type-C cable from the station to your host computer, and off you go! Works with Windows, macOS, and Linux systems. Please see below for a full list of our currently supported products.

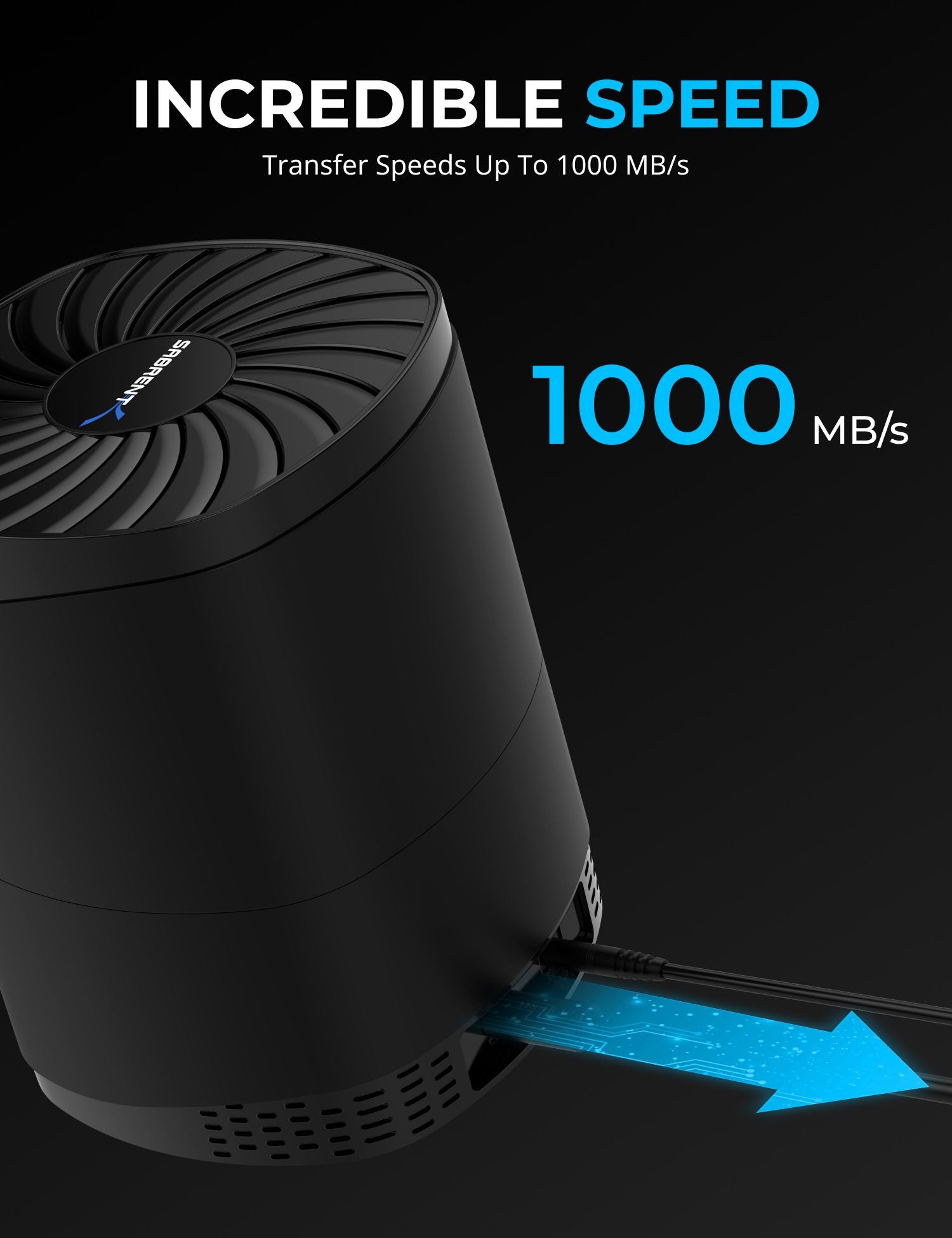

Each drive or port has its own power status LED and may be accessed individually by the system; know exactly which bays are populated at a glance. The connection allows for up to 1GBps in transfer bandwidth and the power supply additionally makes sure you’re not limited by host port power constraints. Your connection will always be reliable and fast.

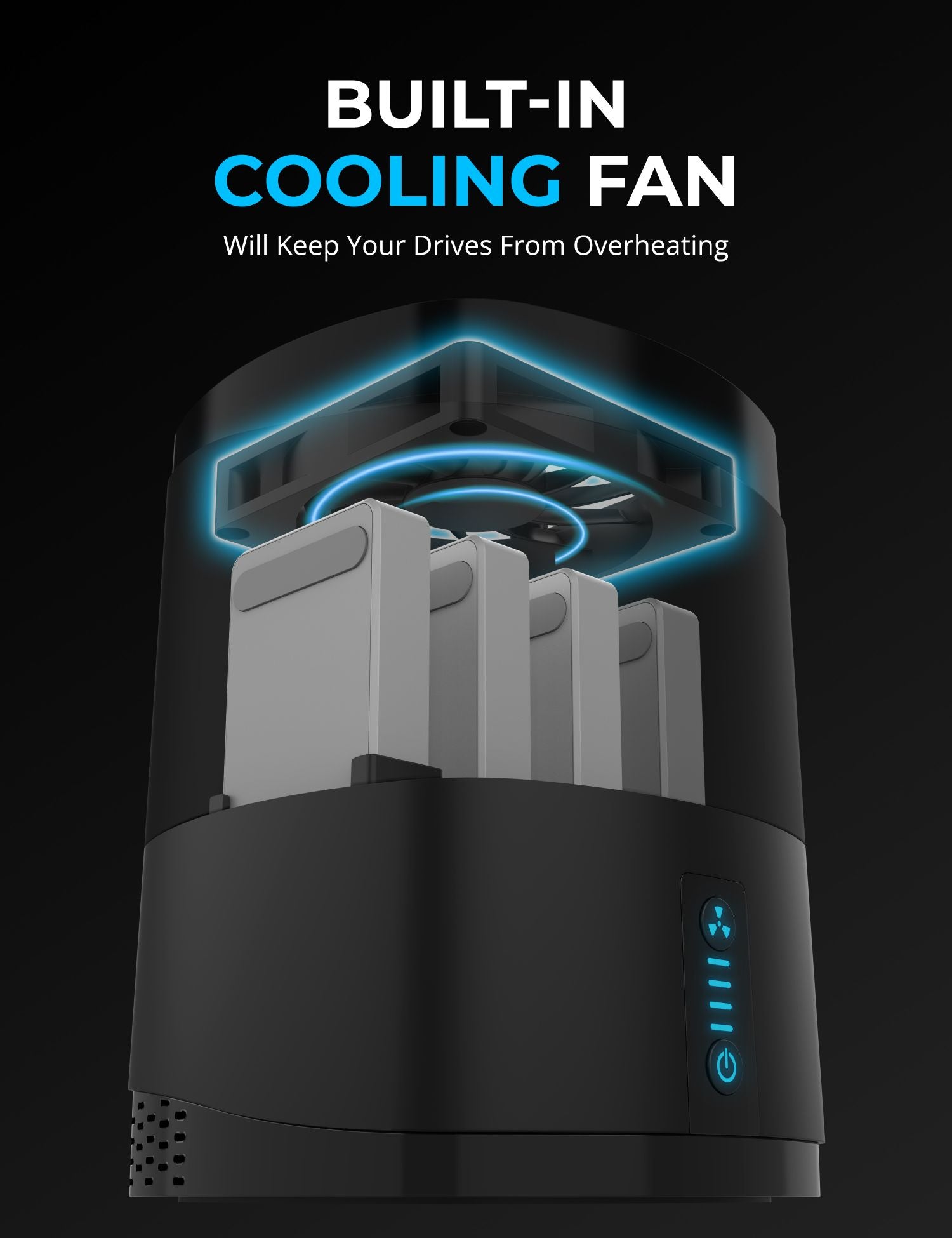

Inserted devices and drives are kept cool even under prolonged use, thanks to the top-mounted 80x80x15mm fan. This fan can be turned on or off via a dedicated button with an LED to indicate its power status. The station also has its own button and LED, for control and to clearly demonstrate power status.

USB connectivity is optimally provided through USB 3.2 Gen 2x1. Older ports are supported through backward compatibility, but speeds will be dependent on the port and your hardware. The included power supply has support for 100-240V AC input including in the U.S., U.K., Europe, and throughout South America with specialized plugs.

Supports: The XTRM-Q and Nano portable SSDs, plus the EC-NVMe enclosure. The CFexpress Type B (CR-CFER) and SD Express 7.1 (CR-SDX7) memory card readers are also supported.




Package Content



  • 4-Bay Docking Station

  • 100-240V AC to 12V 3AMP DC Power Supply

  • USB Type-C to Type-C Cable

  • User Guide

Tech Specs

SKU

DS-4BNE

UPC

840025251571

Material

Plastic

Cable Lenght

39.4 inch

System Requirements

Windows®and MacOS®

Dimensions

Length
6.1 in.

Height
4.7 in.

Width
4.7 in.

Weight
16 oz.

What's in the Box?

  • 4-Bay Docking Station

  • 100-240V AC to 12V 3AMP DC Power Supply

  • USB Type-C to Type-C Cable

  • User Guide
