CONNECT & SWITCH
Share your Thunderbolt and USB devices between two host computers with high-res display output.
BIG DISPLAY
Switch between 2 computers or DisplayPort Alt Mode USB-C devices with output to an external display.
SB-TB4K

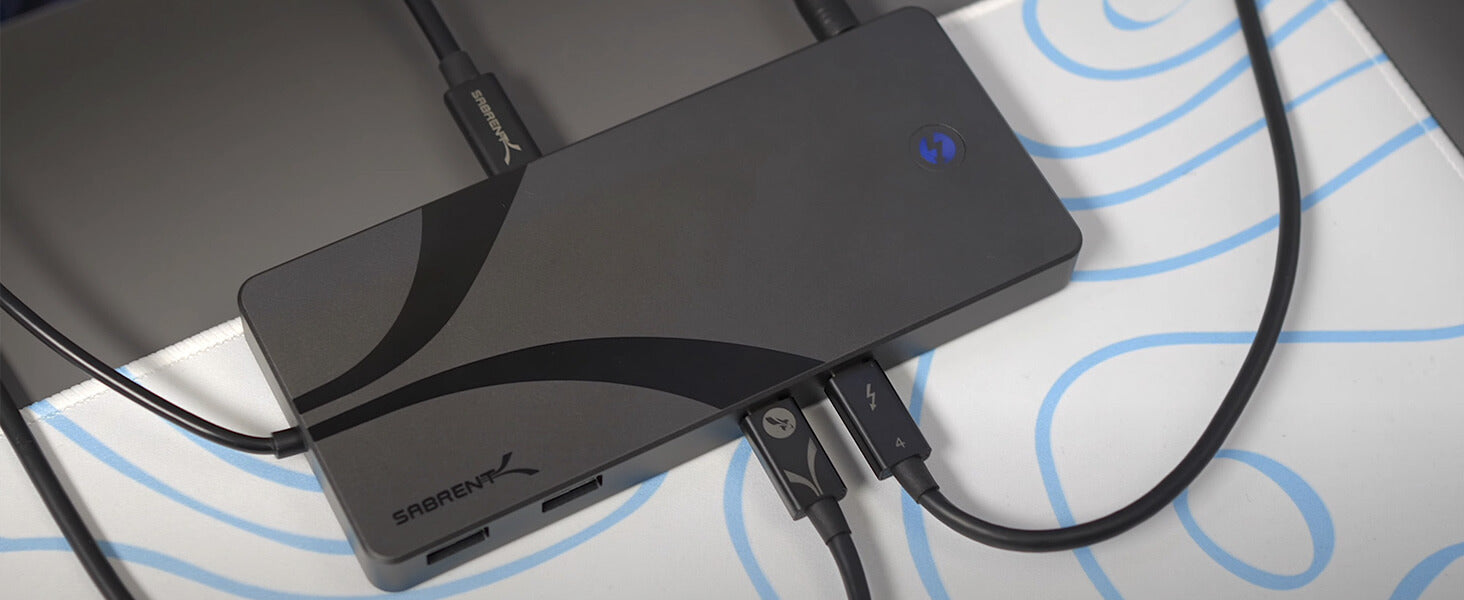

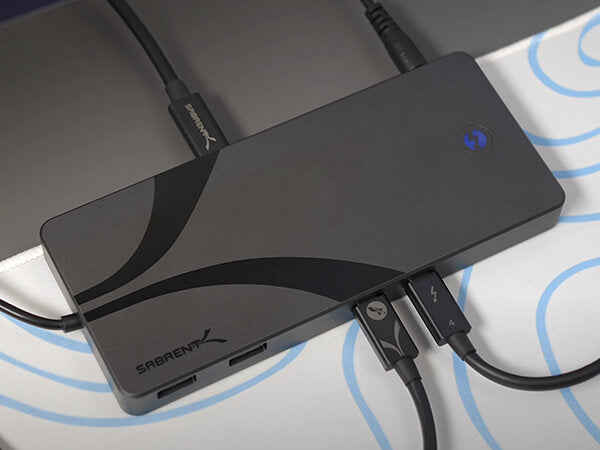

The sleek Sabrent Thunderbolt 4 KVM Switch (SB-TB4K) is here, ready to help you share your Thunderbolt and USB devices between two host computers with high resolution display output. It’s an easy way to maximize your productivity, for work or for play.
Connect up to three Thunderbolt 4 devices with transfer speeds of up to 40Gbps. This switch also has four USB Type-A ports for other devices like keyboards, mice, and external storage, with transfer speeds of up to 10Gbps (USB 3.2 Gen 2x1). All seven ports support BC1.2 and charge up to 5V@2.4A for added convenience.
Seamlessly switch between two computers or DisplayPort Alternate Mode (DP Alt Mode) capable USB-C devices with output to an external display. Enjoy up to 8K@60Hz (30Hz without DSC1.2) on a single screen or up to 4K@60Hz on two simultaneously. Reclaim your workspace in style.
Manufactured from high-quality aluminum to withstand impact and dissipate heat to improve its lifespan. Arrives with an integrated cable (70cm) and clear LED indicators for source and PD statuses. Includes a 24V/5A power adapter to support PD3.0 charging at up to 60W for laptops and other devices.
The Sabrent
Thunderbolt 4 KVM Switch (SB-TB4K) is a fast and sleek switchable hub for your laptop and desktop computers. Seamlessly switch between two machines with the push of a button. Output at a high
resolution of up to 8K@60Hz for maximum screen real estate with DisplayPort Alternate Mode (DP Alt Mode) capable devices. Hook up and share keyboards, mice, printers, external storage, memory card readers, smartphones, and much more, with
three Thunderbolt 4 and four USB Type-A ports. Enjoy
fast transfers either way at up to
40Gbps over TB4 and 10Gbps over USB (USB 3.2 Gen 2x1).
This switch is also capable of
charging at up to 60W via Power Delivery 3.0 (PD3.0) and up to
5V/2.4A over USB with all ports having Battery Charging 1.2 (BC1.2) support. The

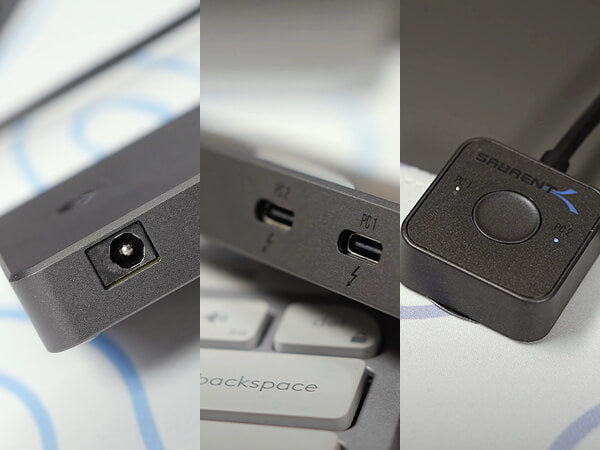

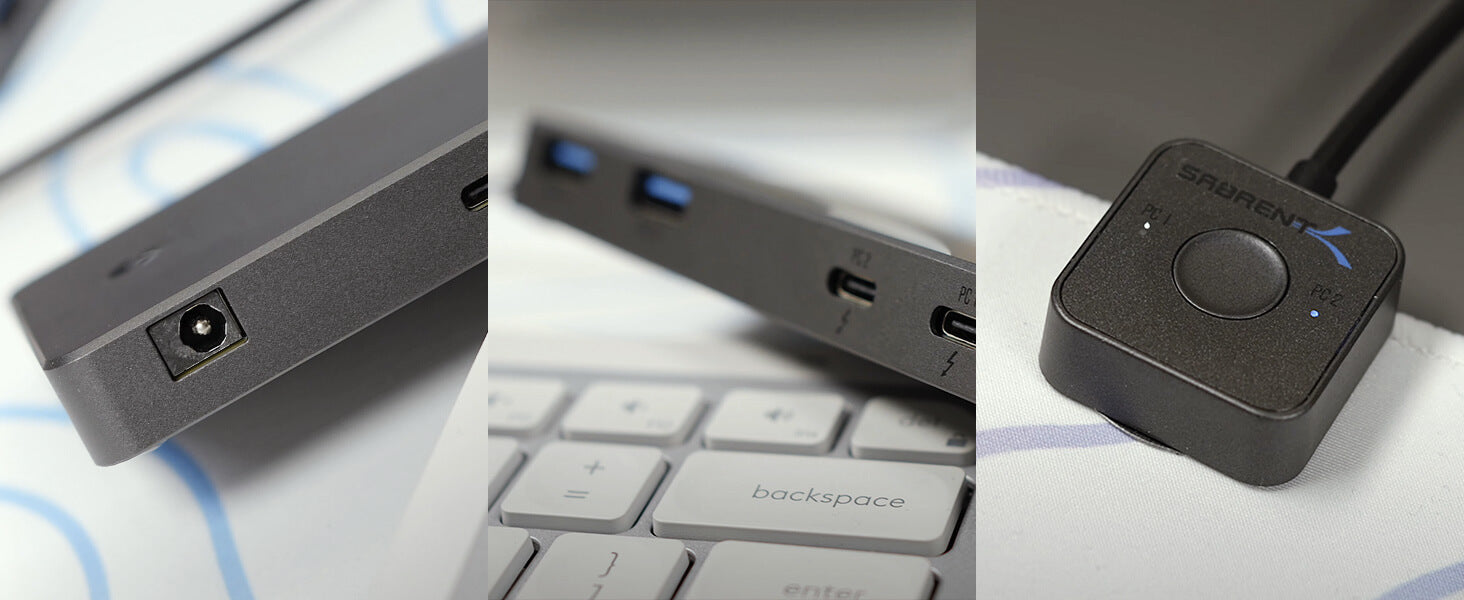

integrated 70cm cable simplifies positioning and use of the switch, and LED indicators give quick and clear information on source and PD statuses. The switch is made out of
high-quality aluminum to fit any decor and to stand the test of time thanks to ruggedness and superior heat dissipation. Best of all, it’s designed by Sabrent with your convenience and productivity in mind.
Note: Single display at up to 5K/6K/8K@60Hz (DSC) or 4K@120/144Hz (DSC) with adaptive sync support and dual displays at up to 4K@60Hz for systems that support DP Alt Mode (DisplayPort 1.4). A USB-C or TB4 to DisplayPort adapter recommended for best compatibility. EDID and MST supported.
Supported operating systems:
• Windows
• macOS
Package contents:
• Thunderbolt 4 KVM Switch
• Thunderbolt 4 cable (70cm)
• Power adapter (24V/5A)
• User manual
• Warranty card
Share your Thunderbolt and USB devices between two host computers with high-res display output.
Switch between 2 computers or DisplayPort Alt Mode USB-C devices with output to an external display.
2 USB-C Ports
USB 3.2 Gen 2 Type-A Ports
USB 3.2 Gen 2 Type-A Ports
Thunderbolt 4 Ports
• Windows.
• macOS.
Length
6.3 in.
Height
0.71 in.
Width
2.76 in.
Weight
17.7 oz.
• Thunderbolt 4 KVM Switch
• Thunderbolt 4 cable (70cm)
• Power adapter (24V/5A)
• User manual
• Warranty card
1-year warranty without registration
Register your product to extend your warranty coverage to
2
years
Registration of your Sabrent product enables us to offer you the best service through important recall notifications and proof of ownership. Registering within 90 days of your purchase makes sure you don’t forget this important step, and it allows us to extend your warranty. A 1-year warranty will be extended to a 2-, 3-, or 5-year warranty depending on the product type.
