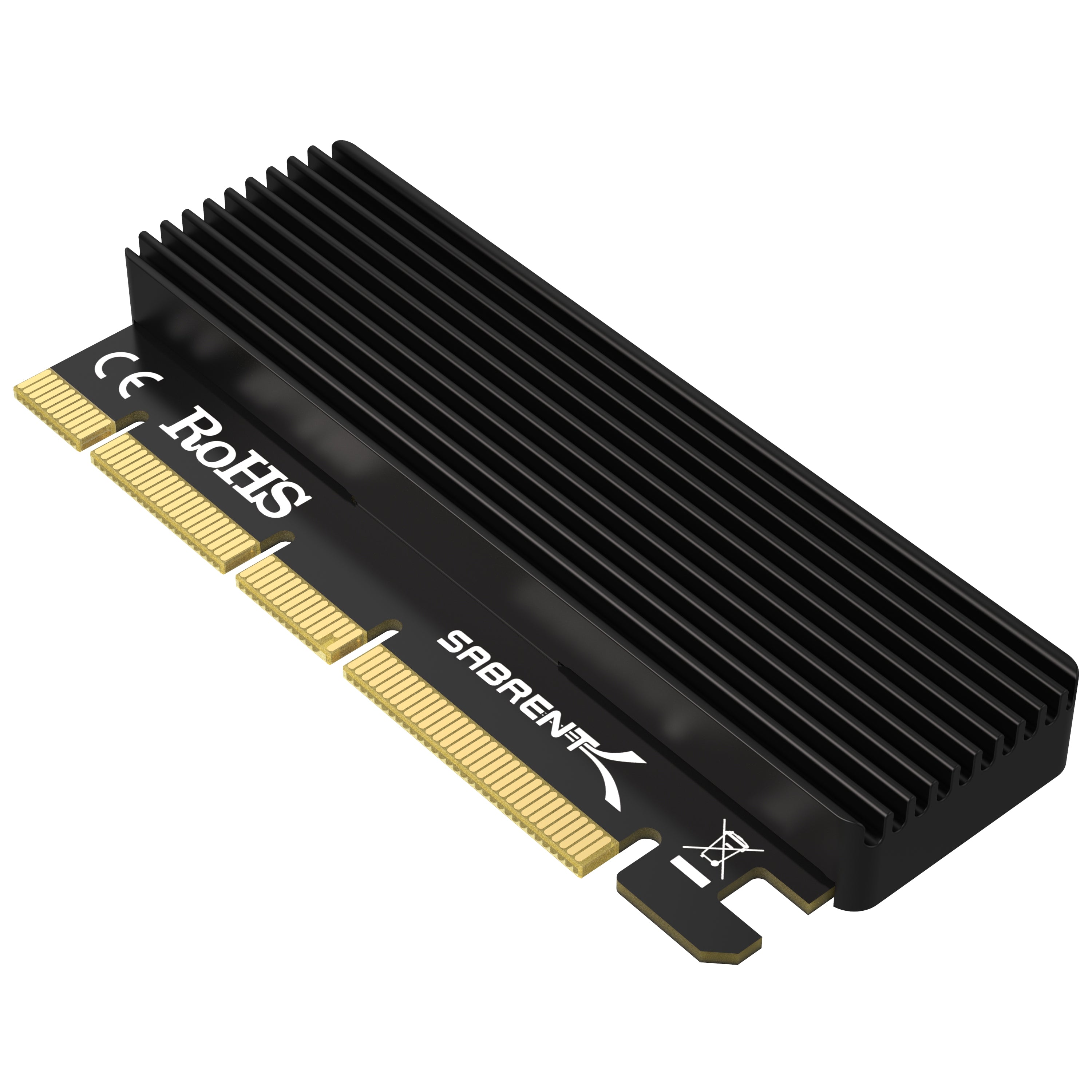

NVMe M.2 SSD to PCIe X16/X8/X4 Card

With Aluminum Heatsink

EC-PCIE

  • Enjoy extremely fast transfer speeds via PCIe lanes.

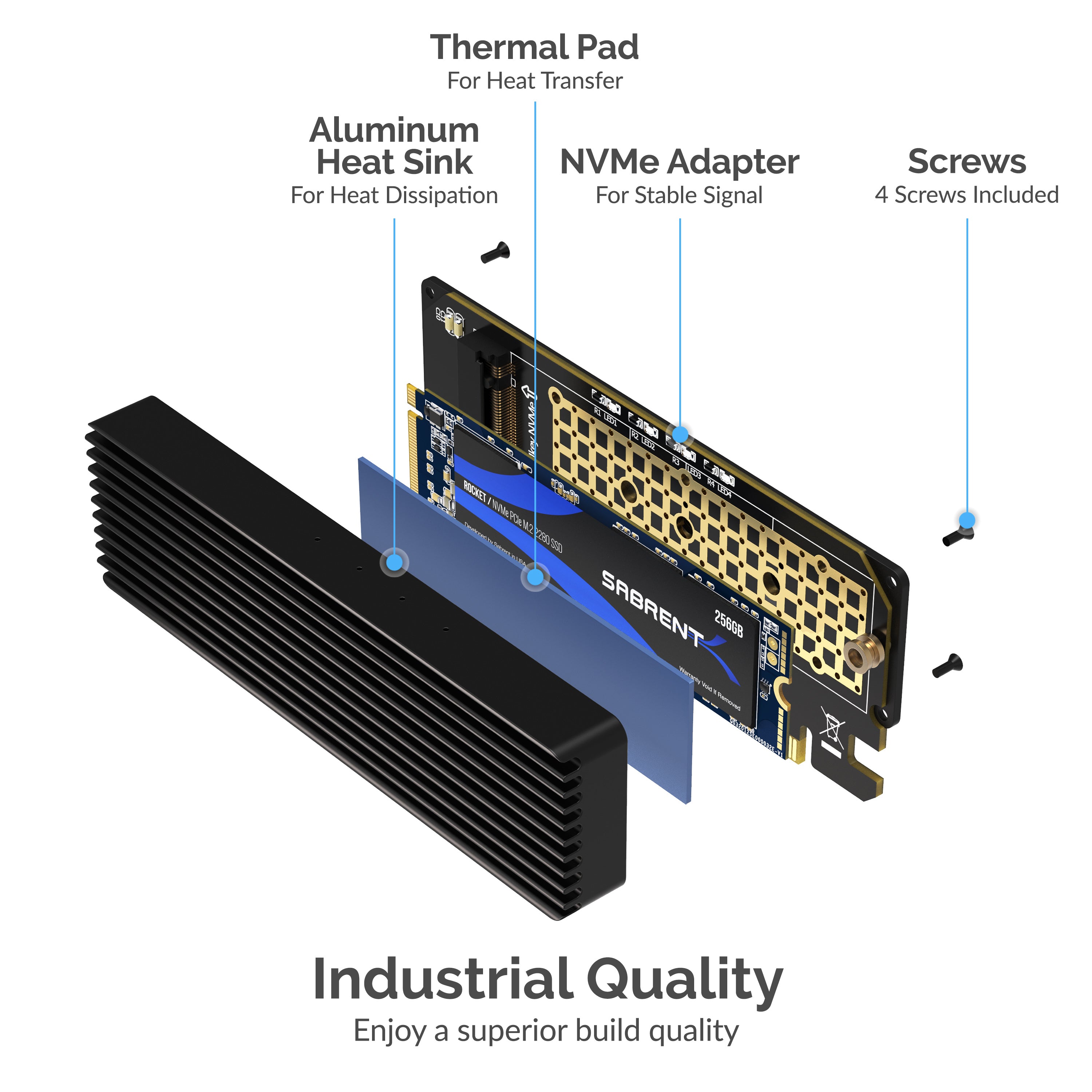

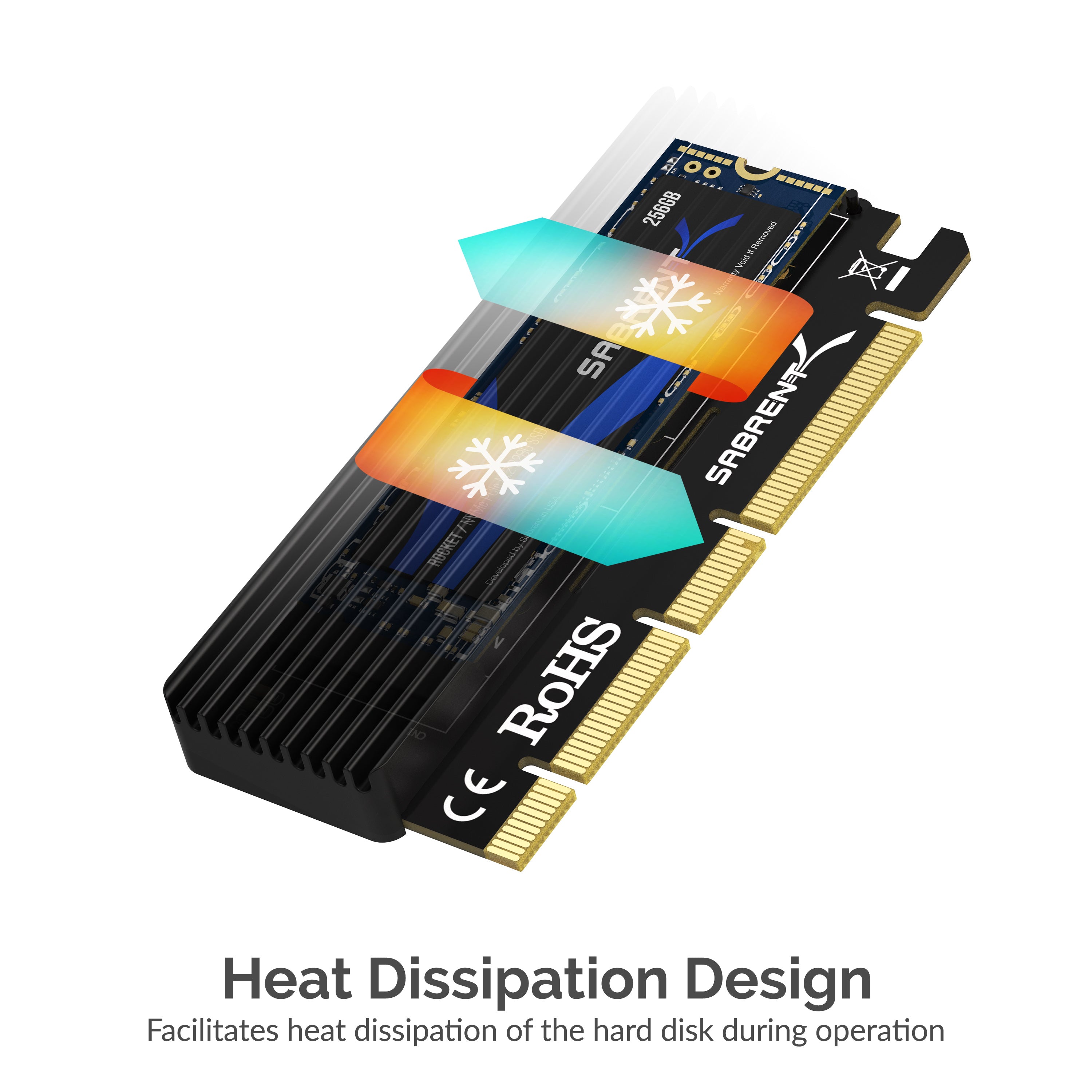

  • Includes a heatsink and thermal padding.
  • SSD bus interface: NVMe. (NOT compatible with SATA M.2 SSD)

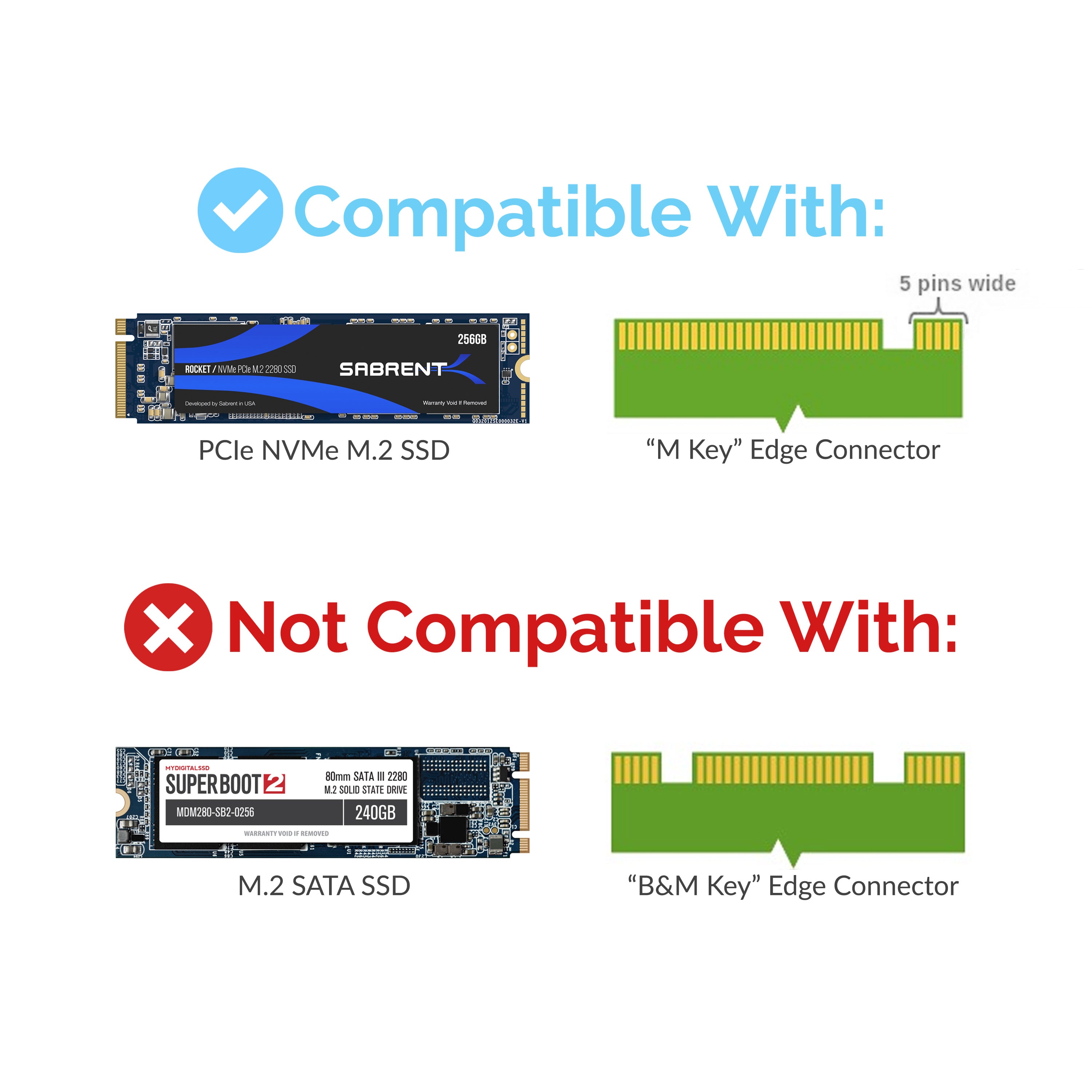

  • SSD form factor: M.2 M-Key. (NOT compatible with B-Key SSD)
  • PCI Express physical interface: PCIe x16/x8/x4 slot.
  • Logical interface / PCIe lanes: x4.
  • Compatible Sizes: 2230 / 2242 / 2260 / 2280.
  • NOTE: It will not fit a PCIe x1 slot.
  • All necessary screws are included.

Product Features

Extremely Fast

Enjoy extremely fast transfer speeds via PCIe lanes

PCI Interface

PCI Express physical interface: PCIe x16/x8/x4 slot. Logical interface / PCIe lanes: x4

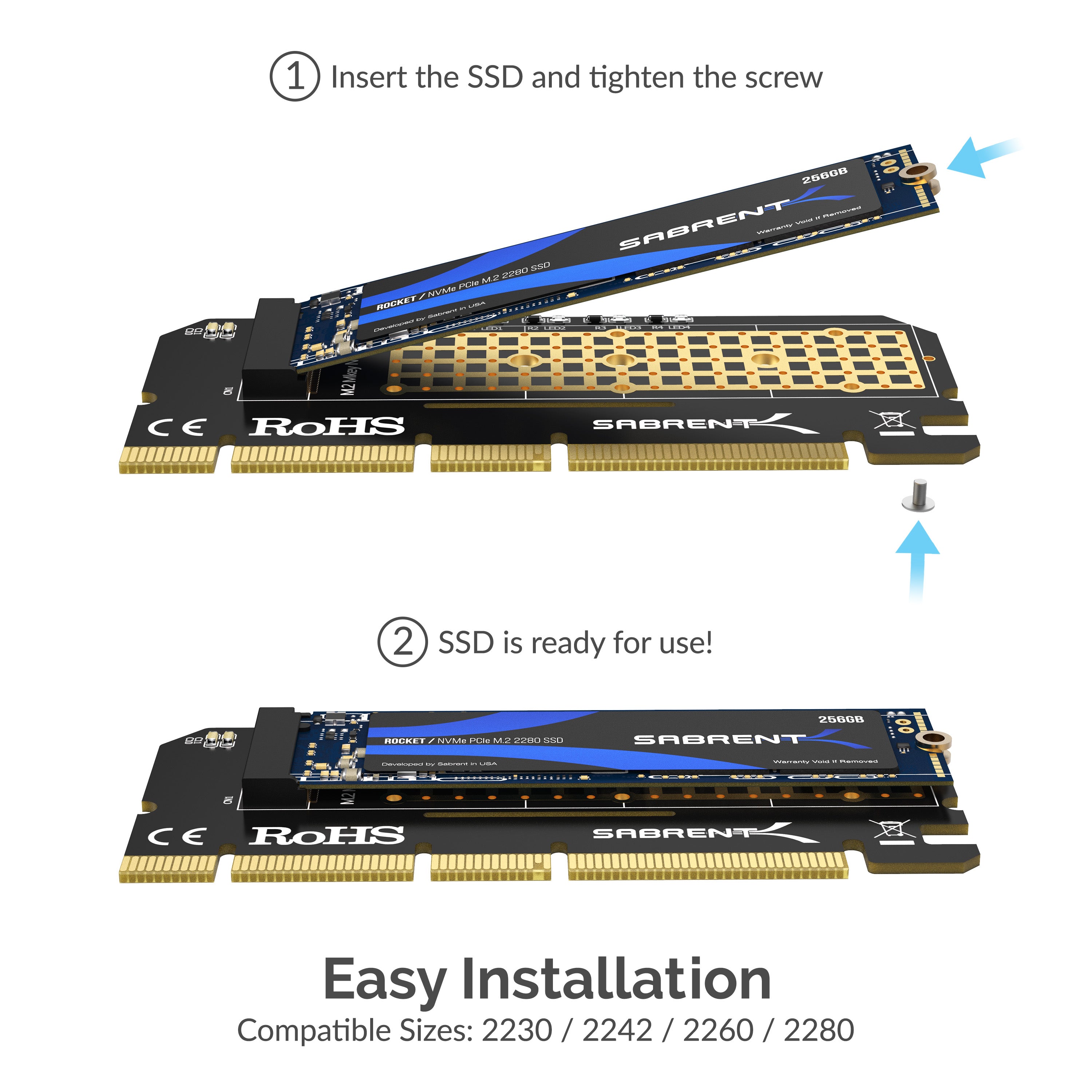

Compatible Sizes

Compatible sizes: 2230 / 2242 / 2260 / 2280

We Got You Covered

All necessary screws are included

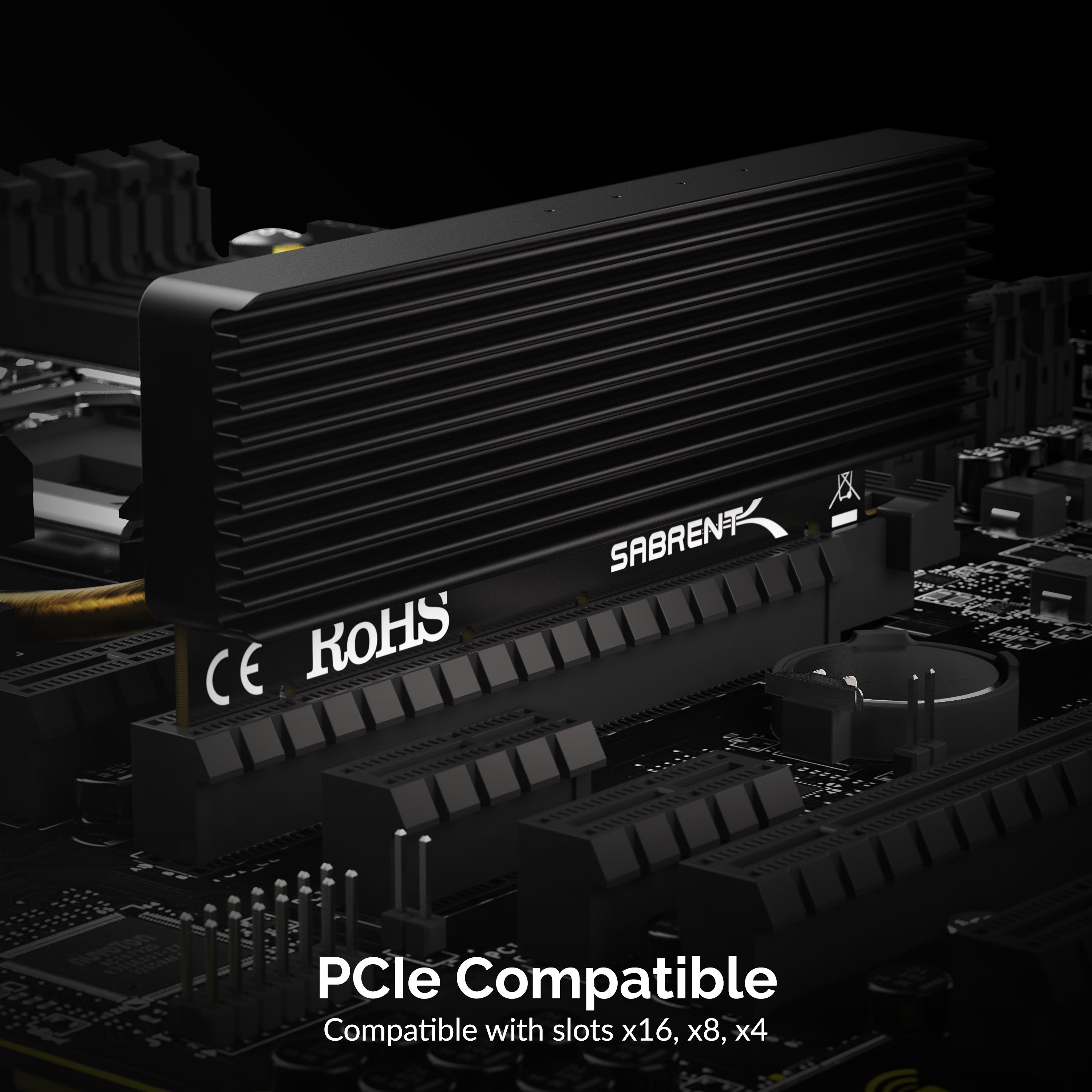

PCIe Compatible

The Sabrent (EC-PCIE) NVMe M.2 SSD to PCIe x16/x8/x4 Card with aluminum heatsink is the perfect solution for faster transfer speeds!
Enjoy extremely fast transfer speeds via PCIe lanes. SSD bus interface: NVMe (NOT compatible with SATA M.2 SSD).  SSD form factor: M.2 M-Key (NOT compatible with B-Key SSD).

Tech Specs

SKU

EC-PCIE

UPC

840025214163

Material

Aluminum

System Requirements

  • A computer and BIOS/UEFI (usually set to AHCI) compatible with NVMe SSD over PCIe lanes
  • Windows 7 with Microsoft's Hotfixes for NVMe SSD, or higher
  • Linux
  • If after installation you get a yellow exclamation mark under the Device Manager you may need to get an additional driver from your SSD's manufacturer.

Dimensions

Length
4 in.

Width
2 in.

Height
0.5 in.

Weight
‎2.85 oz.

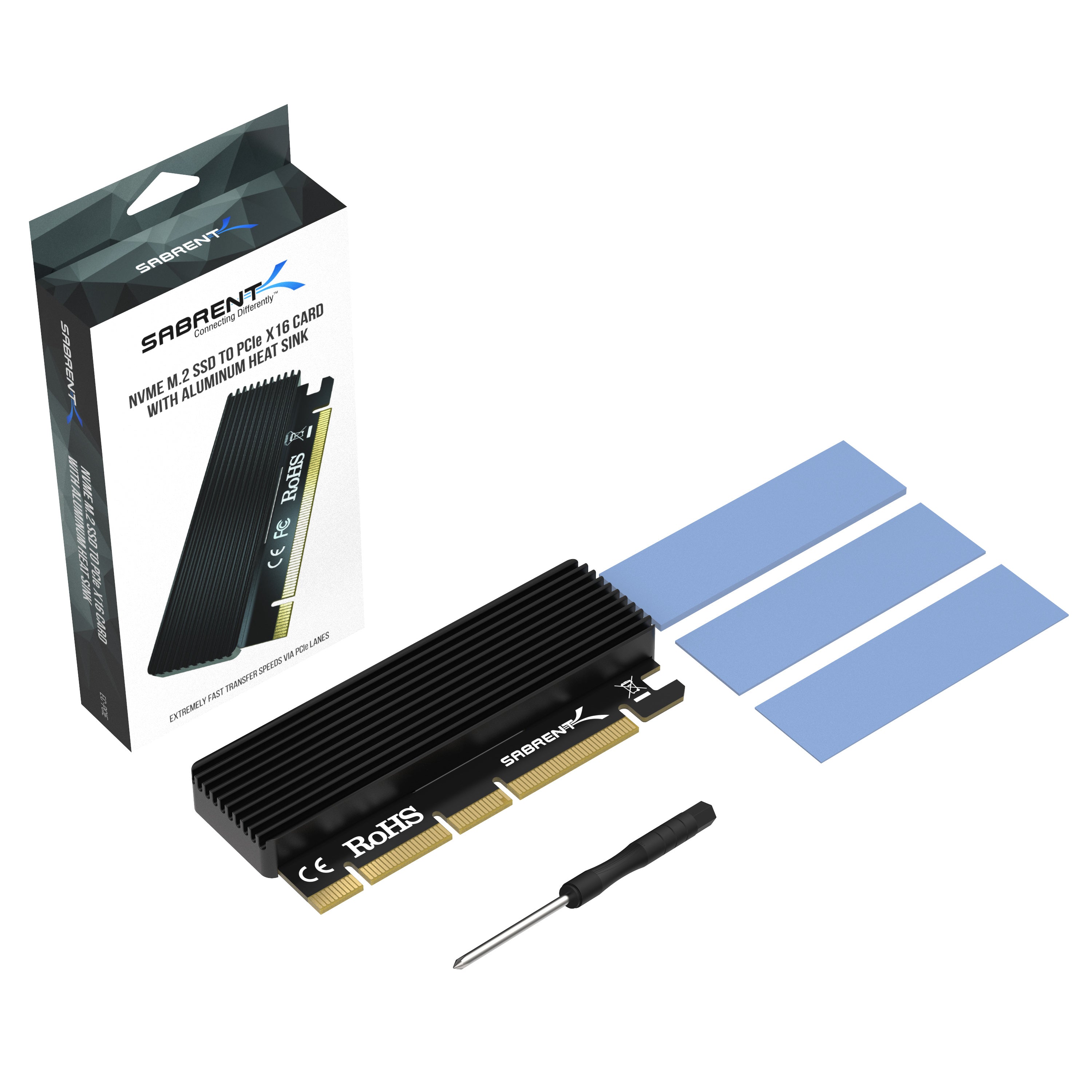

Package Content

• NVMe M.2 SSD To PCIe x16/x8/x4 Card (SSD is NOT included)
• Heatsink with thermal pad
• All necessary screws

Downloads

Warranty

1-year warranty without registration

Register your product to extend your warranty coverage to 2 years

REGISTER NOW

Why Register Your Sabrent Product?

Registration of your Sabrent product enables us to offer you the best service through important recall notifications and proof of ownership. Registering within 90 days of your purchase makes sure you don’t forget this important step, and it allows us to extend your warranty. A 1-year warranty will be extended to a 2-, 3-, or 5-year warranty depending on the product type.

Does the NVMe M.2 SSD to PCIe X16/X8/X4 Card support PCIe 4.0 speeds or PCIe 3.0 only?

Yes, our NVMe M.2 SSD to PCIe x16/x8/x4 Card supports PCIe 4.0 speeds in addition to of PCIe 3.0 speeds.

Should I remove the sticker that comes on my NVMe SSD when installing it into this adapter for better heat transfer?

No! There is no need to remove the sticker label on your M.2 NVMe SSD to install it into this adapter card. It will NOT interfere with cooling. Doing so could damage the SSD.

Do I use thermal paste on/with the heatsink itself?

This add-in card adapter comes with an adhesive thermal pad to transfer heat from the SSD to the included heatsink.
