M.2 NVMe Heatsink for the PS5 Console + Rocket 4 Plus SSD
M.2 NVMe Heatsink for the PS5 Console + Rocket 4 Plus SSD

M.2 NVMe Heatsink for the PS5 Console + Rocket 4 Plus SSD

5 Years Warranty

5 YEARS STANDARD WARRANTY

5-year warranty. No registration required.

View Warranty Policy →
$99.99 $119.99
Quantity

Product Highlights

Designed For PS5 Designed For PS5 — Engineered to fit perfectly and easily into the PS5 SSD expansion slot: installation has never been easier on the PS5

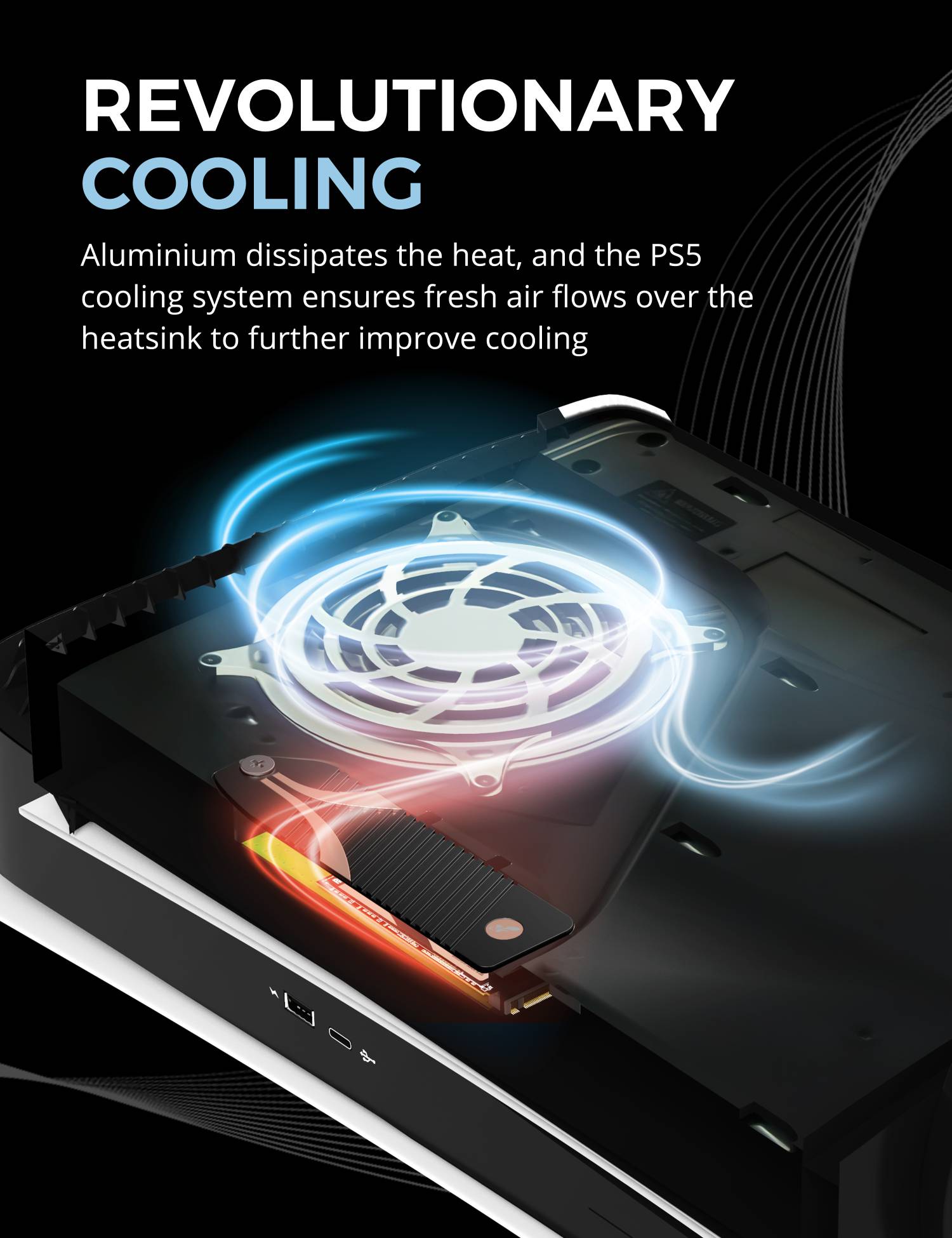

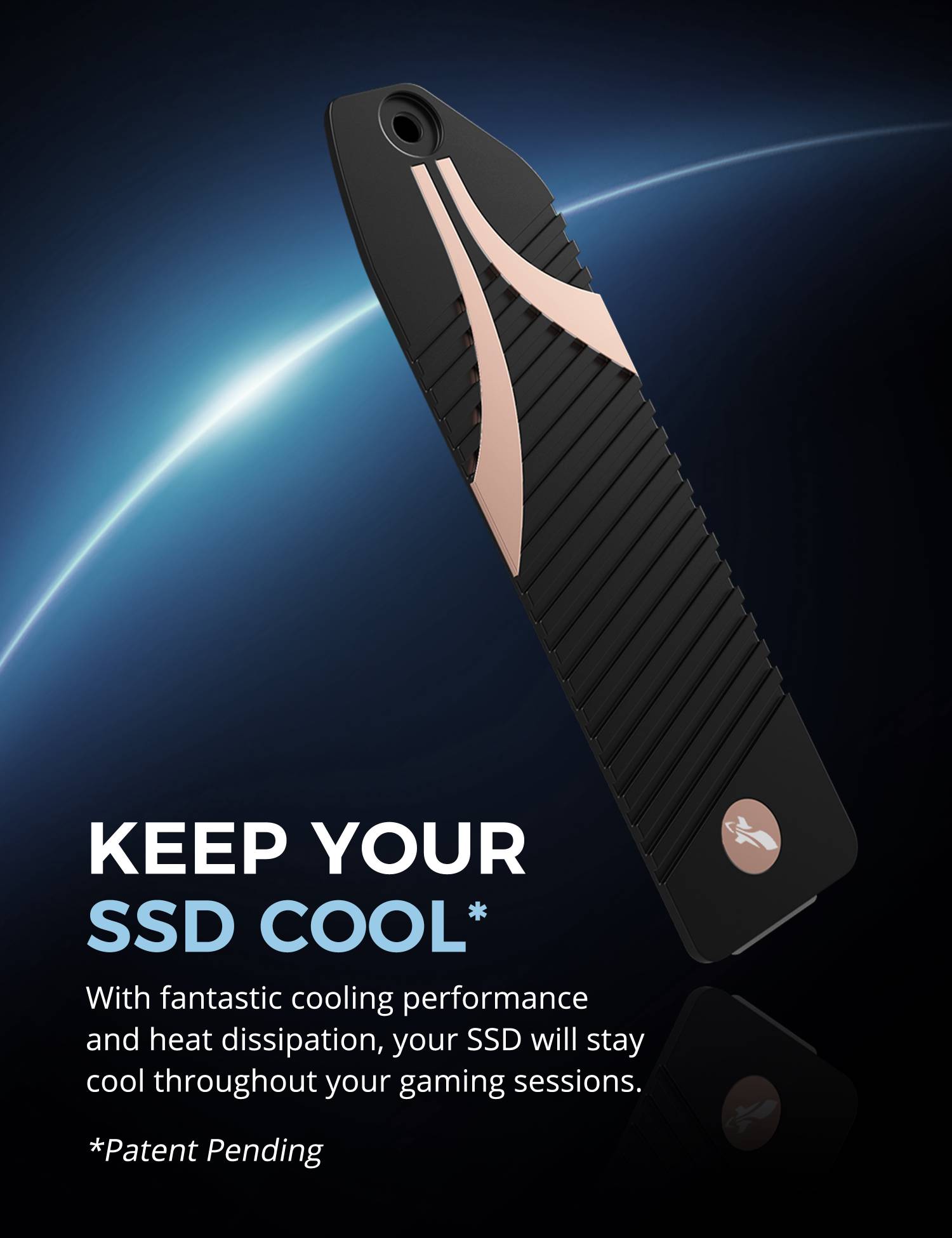

Revolutionary Cooling Revolutionary Cooling — Made from high quality CNC aluminum, the Sabrent PS5 heatsink was designed to maximize cooling performance and simplify installation

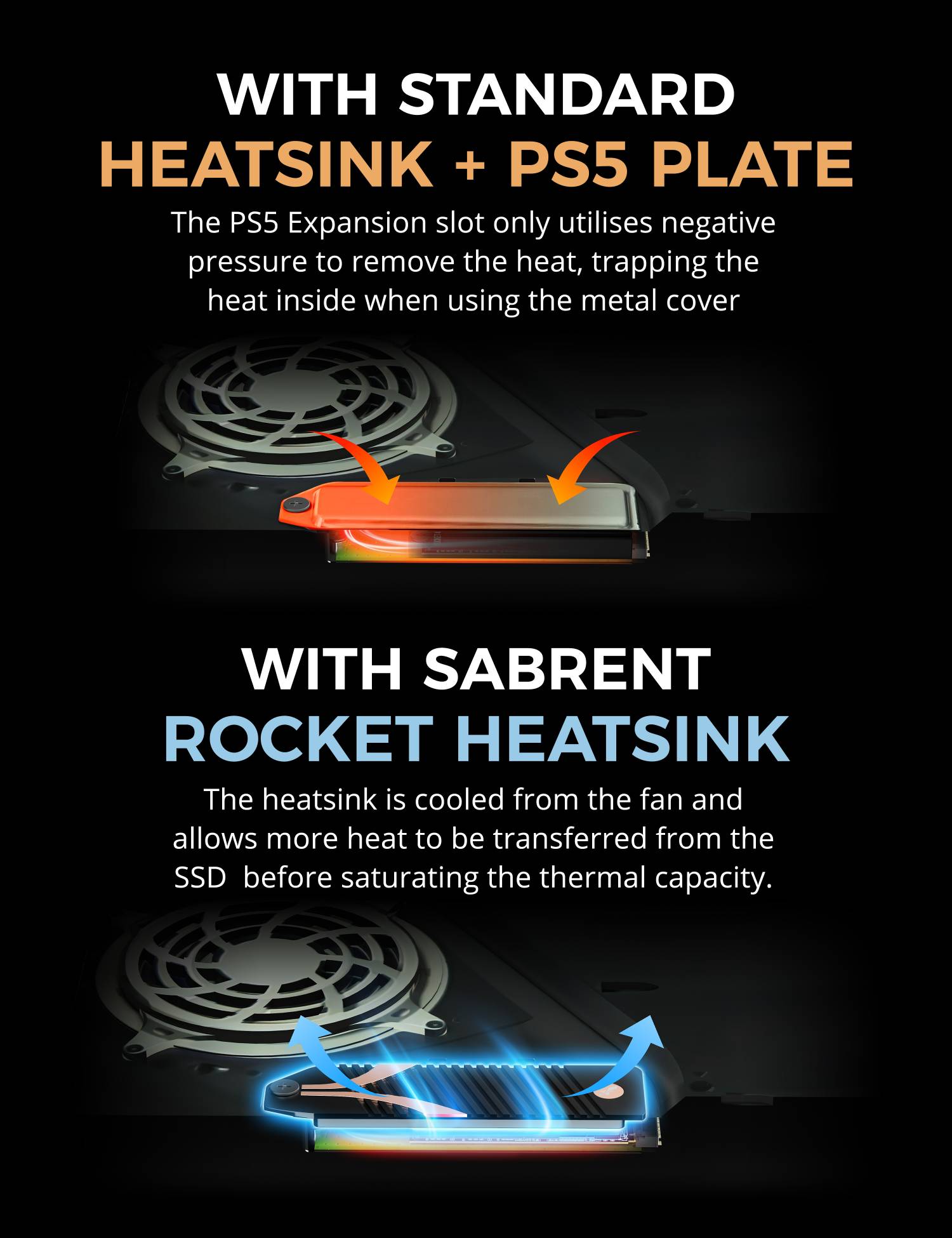

Upgrade Your PS5 Upgrade Your PS5 — Rather than creating a heatsink that would only trap the heat in the metal cover, we designed a heatsink that replaces the native PS5 cover and benefits from natural airflow
Superior Build Quality Superior Build Quality — This SSD heatsink method also uses Sabrent's "sandwich" design which ensures even pressure throughout the SSD for consistent heat transfer
Free Shipping 1-3 Business Days
Customer Support Mon-Fri 9:00 - 17:00 EST
Extended Warranty
Extended Warranty Up to 5 Years
Specs
  • PCIe 4.0 x4 interface, NVMe 1.3 compliant. APST/ASPM/L1.2 support.
  • Supports SMART and TRIM functions. Works in an enclosure.
  • Wide flash compatibility. Uses TLC with DRAM.
  • Advanced endurance features for a long drive lifespan. The included heatsink makes sure the drive never overheats.
  • Upgradeable firmware and software support.
  • 4.0-capable motherboard is recommended, but the drive is backward compatible with PCIe 3.0 and 2.0 M.2 sockets.
Dimensions

Heatsink
Length: 4.95 in.
Width: 1.3 in.
Height: 0.32 in.
Weight: 2 oz.
SSD
Length: 3.15 in.
Width: 0.86 in.
Height: 0.11 in.
Weight: 0.2 oz.
In the box
  • SSD
    Heatsink
    Thermal pad
    User manual
Manuals

Why Buy Direct From Sabrent?

Skip Amazon — get more for less, with benefits only available here.

Lowest Price Guaranteed

Direct pricing beats Amazon after coupons expire.

Same-Day Shipping

Orders before 2 PM ET ship the same business day.

2-Year Warranty

Register within 90 days for extended coverage.

30-Day Returns

Not satisfied? Return within 30 days, no questions asked.

Downloads
Warranty
FAQ
Reviews

Customers also bought

Warranty

5 Years warranty included.

View Warranty Policy →

FAQ

Does the Sabrent Rocket 4 Plus replace the PS5 SSD?
The Sabrent Rocket 4 Plus doesn't replace the SSD inside your PS5 but expands the storage via Sony's purpose-built SSD expansion slot. This isn't a hack or a modification, just a relatively easy upgrade. The reason you would expand the SSD internally rather than running an external SSD via the USB ports is because you cannot run PS5 games directly from these USB drives but you can run PS4 games from them.
Should I even run a Heatsink at all?
We strongly advise you use a heatsink, even Sony themselves have made this recommendation and we agree from our tests.
Can I install two heatsinks?
If you have an SSD with a built in heatsink, this must be removed. You cannot install two heatsinks with our Sabrent PS5 Heatsink.
Is it easy to install?
The PS5 is a mass consumer device. For some users, they are already nervous about taking off the lid and we didn't want users to go through building a heatsink around their SSD with a bunch tiny screws and we definitely do not think elastic bands are a good way to mount an SSD Heatsink like we have seen on the market! So to combat the thermal issues and to make the installation process easier, after a few iterations and lots of tweaking it, we of course come up with this design and it worked great. The Heatsink replaces the metal cover, you can not install both. This Heatsink uses our sandwich design which we use on almost all our SSD enclosures to ensure good pressure on the SSD for optimal heat transfer.
